SCRUB SINK SUPPORT
Mac Medical Scrub Sink replacement parts for the SS and ES series sinks.
SS SERIES
Click to open the list

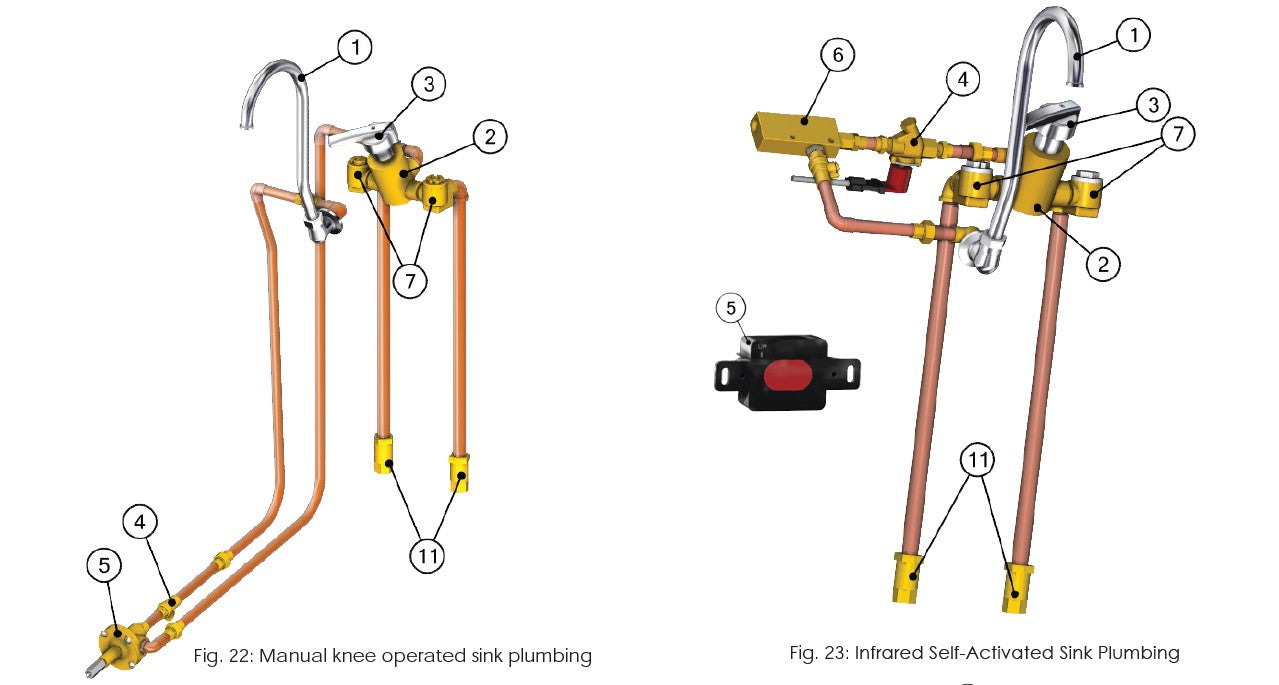

SS Series Parts List
SS Series Parts - Click to expand
2- Thermostatic Mixing Valve S0009
4- IR Solenoid S0013 (Infrared)
4- Flow Control S0024 (Manual)
5- Knee Water Valve S0029 (Manual)
6- Inline Flow Switch Timer S0130-01
12- Sink Divider (Splash Screen) S0034
13- Knee Water Valve (Rebuild Kit) S0110-02
14- Thermostatic Mixing Valve (Rebuild Kit) S0249
15- Thigh Operated Soap Pump S0030
17- Face Plate Grommet with Nut H0086-01
19- Mixing Valve Stand Off S0042
20- Spring Hinge on Knee Panel Weldment S0156R
21- Spring Hinge on Knee Panel Weldment S0156L
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ES SERIES
Click to open the list

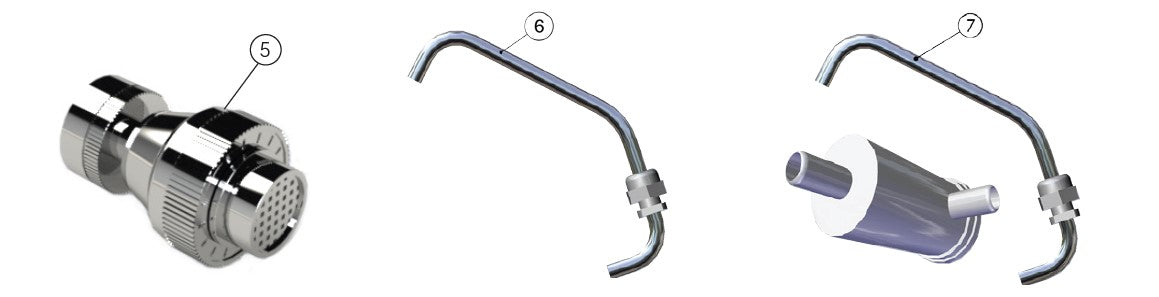

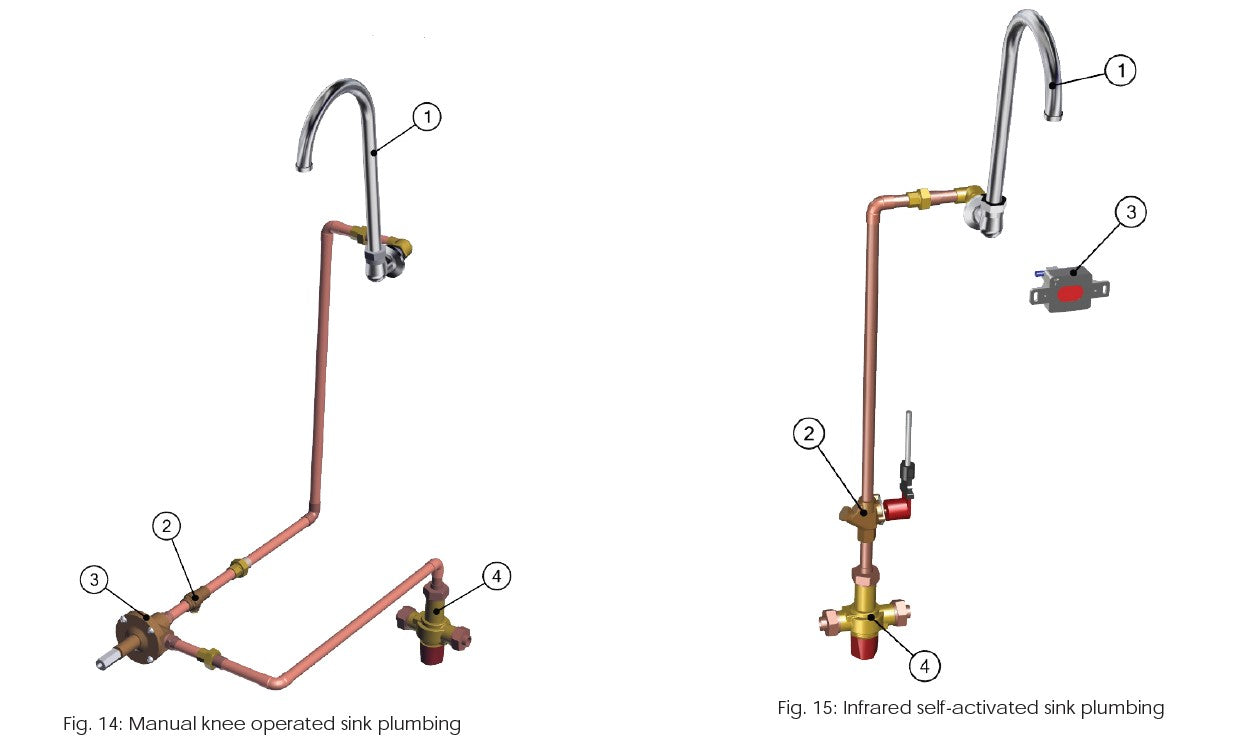

ES SERIES PARTS LIST
IFU Documents
All of our IFU Documents, Manuals and How-To videos are on our main website. To view this usefull library, please click on the link below.
