KB - Thera-Glide W Series (Wood and Oasis)

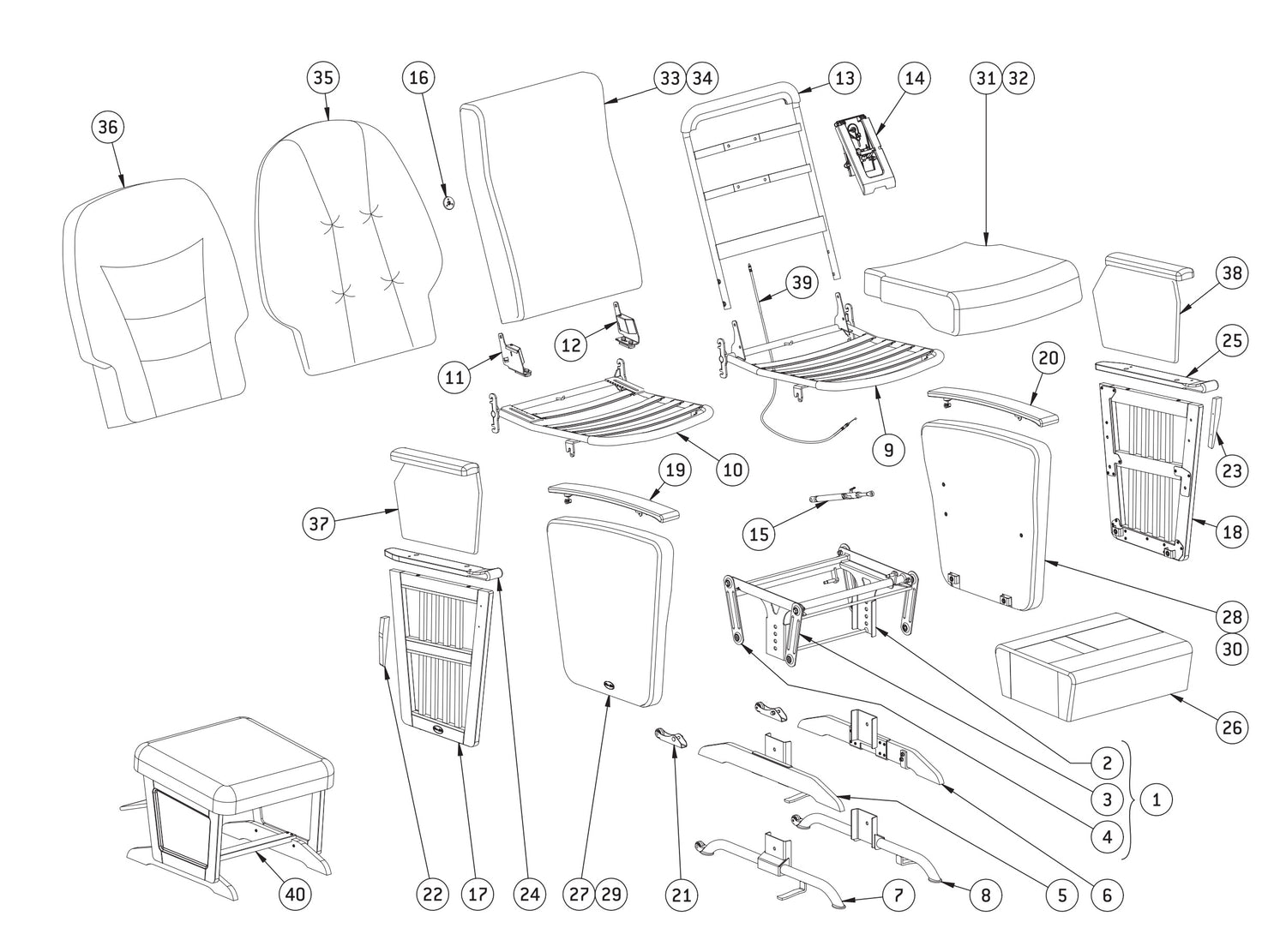

Identify Your Part
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.
Parts List
Thera-Glide W Series - Click to expand
#1 - RP-2117 Back and Rocker Set (Incl. 2, 3, 4)
#5 - RP-2018-DR Right Wooden Leg and Metal Rail Support
#6 - RP-2018-GA Left Wooden Leg and Metal Rail Support
#7 - RP-2015-DR Tubular Meta Leg, Right
#8 - RP-2015-GA Tubular Meta Leg, Left
#9 - RP-2030 Seat Frame for Fixed Back Rest
#10 - RP-2131 Seat Frame for Depth-Adjustable Backrest
#11 - RP-1055-DR Right Adjustable Backrest Support Bracket with Cover
#12- RP-1055-GA Left Adjustable Backrest Support with Cover
#14 - RP-1060 Backrest Activation System
#15 - RP-1080 Locking Cylinder with Hardware
#17 - RP-20-DR Right Side Mission-Style Wooden Frame with Metal Fixation Bracket
#18 - RP-20-GA Left Side Mission-Style Wooden Frame with Metal Fixation Bracket
#19 - RP-3010-DR Curved Wooden Armrest with Moutning Brackets, RIght
#20 - RP-3010-GA Curved Wooden Armrest with Moutning Brackets, Left
#21 - RP-01 Left or RIght Rear Anti-Tip with Wheel
#22 - RF-12 Right Wooden Armrest Wedge
#23 - RF-13 Left Wooden Armrest Wedge
#24 - RF-14 Right Wooden Armrest
#25 - RF-15 Left Wooden Armrest
#26 - RA-28-17 Undercarriage Cover
#27 - RY-40-DR Upholstered Armrest with Mounting Bracket, Right
#28 - RY-40-GA Upholstered Armrest with Mounting Bracket, Left
#29 - RY-45-DR Upholstered Armrest with Stitching and Mounting Bracket, Right
#30 - RY-45-GA Upholstered Armrest with Stitiching and Moutning Bracket, Left
#32 - RY-52-17 Seat Cushionw ith Stiching
#33 - RY-53-17 Contemporary Backrest Cushion
#34 - RY-54-17 Contemporary Backrest Cushion with Stiching
#35 - RY-64-17 Comfort Plus Backrest Cushion
#36 - RY-67-17 Classic Backrest Cushion
#37 - RY-68 Armrest Cushion, Right
#38 - RY-69 Armrest Cushion, Left
