KB- Thera-Glide Stationary Oasis
Identify Your Part
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

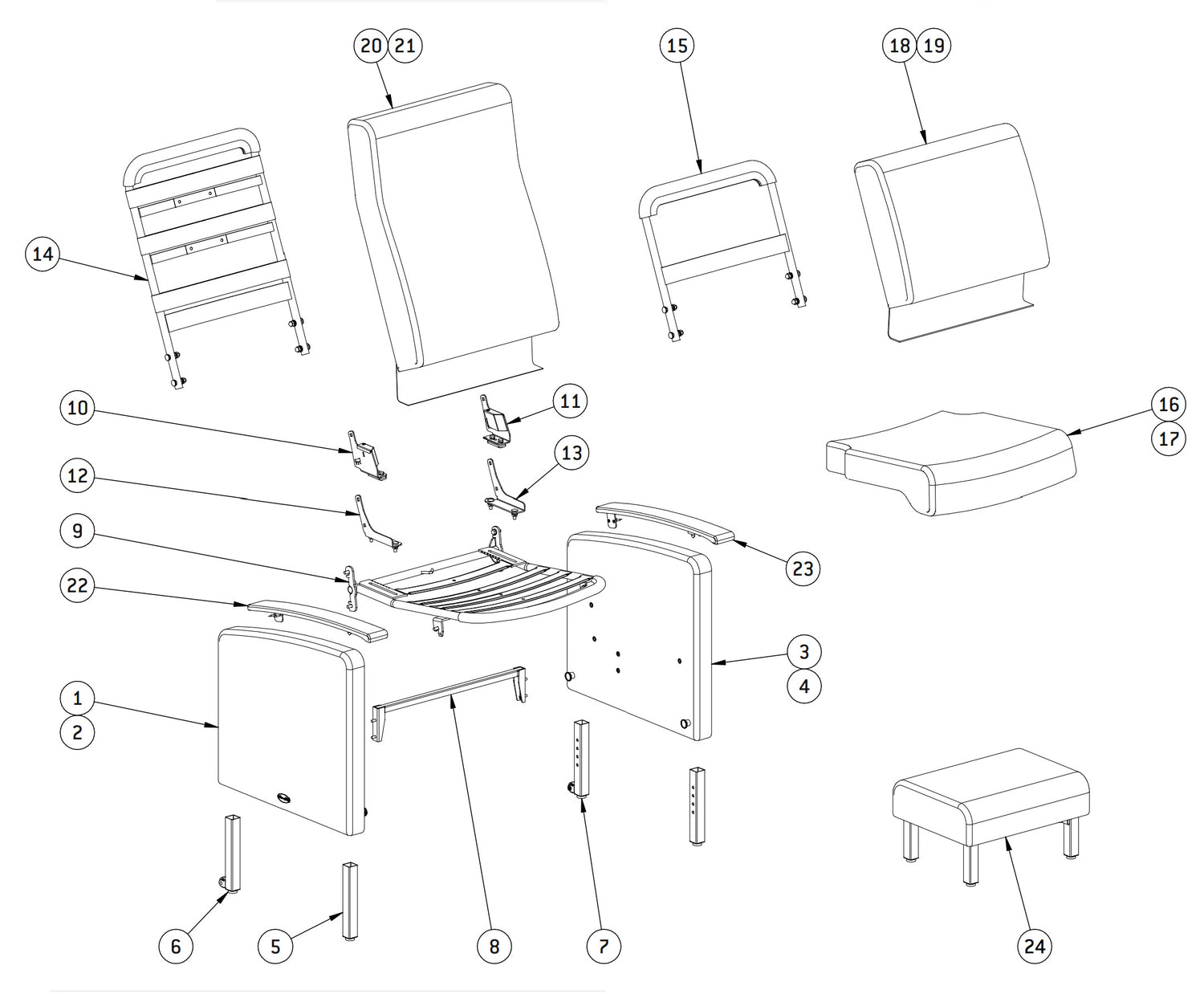

Parts List
Thera-Glide Stationary Oasis - Click to expand
#1 - VU-40-DR Upholstered Arm, Right
#2 - VU-40S-DR Upholstered Arm with Stiching, Right
#3 - VU-40-GA Upholstered Arm, Left
#4 - VU-40S-GA Upholstered Arm, Right
#5 - VP-15 Height-Adjustable Foot
#6 - VP-020-DR Height-Adjustable Rear Foot with Wheel, Right
#7 - VP-020-GA Height-Adjustable Rear Foot with Wheel, Left
#9 - RP-2031 Adjustable Seat Frame
#10 - RP-1055-DR Right Adjustbale Backrest Support Bracket with Cover
#11 - RP-1055-GA Left Adjustable Backrest Support Bracket with Cover
#12 - RP-1057-DR Right Fixed Backrest Support Bracket with Hardware
#13 - RP-1057-GA Left Fixed Backrest Support Bracker with Hardware
#14 - VP-040-20 Backrest Frame
#15 - VP-050-20 Low Backrest Frame
#16 - RY-51-20 Waterfall Seat Cushion
#17 - RY-52-20 Waterfall Seat Cushion with Stitching
#18 - VU-50-20 Low Back Cushion
#19 - VU-50S-20 Low Back Cushion with Stitching
#20 - VU-54-20 Contemporary Backrest Cushion with Stitching
#21 - VU-55-20 Contemporary Backrest Cushion
#22 - RP-3010-DR Curved Wooden Armrest with Mounting Bracket, Right
#23 - RP-3010-GA Curved Wooden Armrest with Mounting Bracket, Left
