KB-Single Cavity Combination Warmers

For model EC550BL

Assembly A

Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

Assembly B

Assembly C

Electrical Chassis

Fan

Cavity Sensor

Control Interface

parts marked with * only sold by request

Parts List

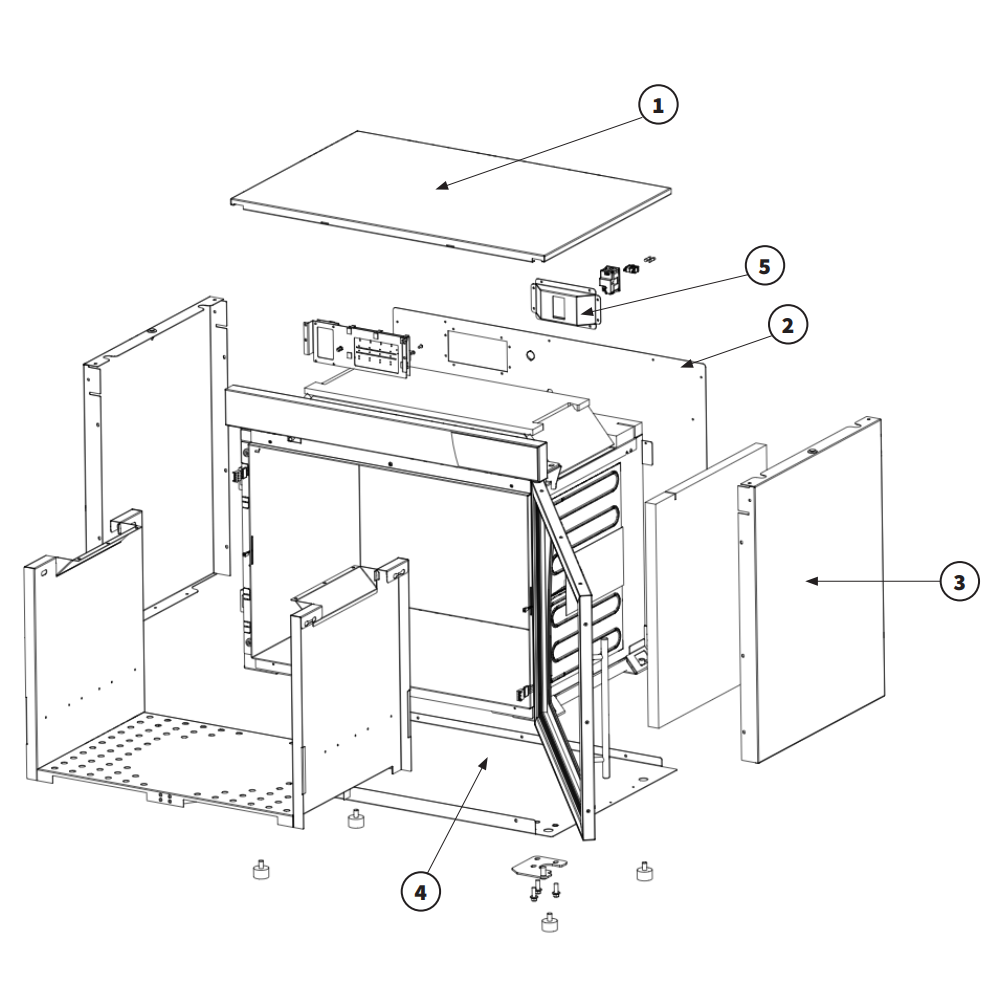

Assembly A

1. Panel, Top Cover

  • 1033971: 18" depth
  • 1033048: 24" depth
  • 1034487: 18" depth, built-in
  • 1034552: 24: depth, built-in

2. Panel, Rear Cover

  • 1033043: rear cover
  • 1034113: rear cover, built-in

3. Panel, Side Cover

  • 1033973: 18" depth
  • 1033050: 24" depth
  • 1034292: left, built-in
  • 1034039: right, built-in

4. Panel, Bottom Cover

  • 1033972: 18" depth
  • 1033046: 24" depth
  • 1034153: built-in

5. 1033140: Panel, Bracket, Inlet

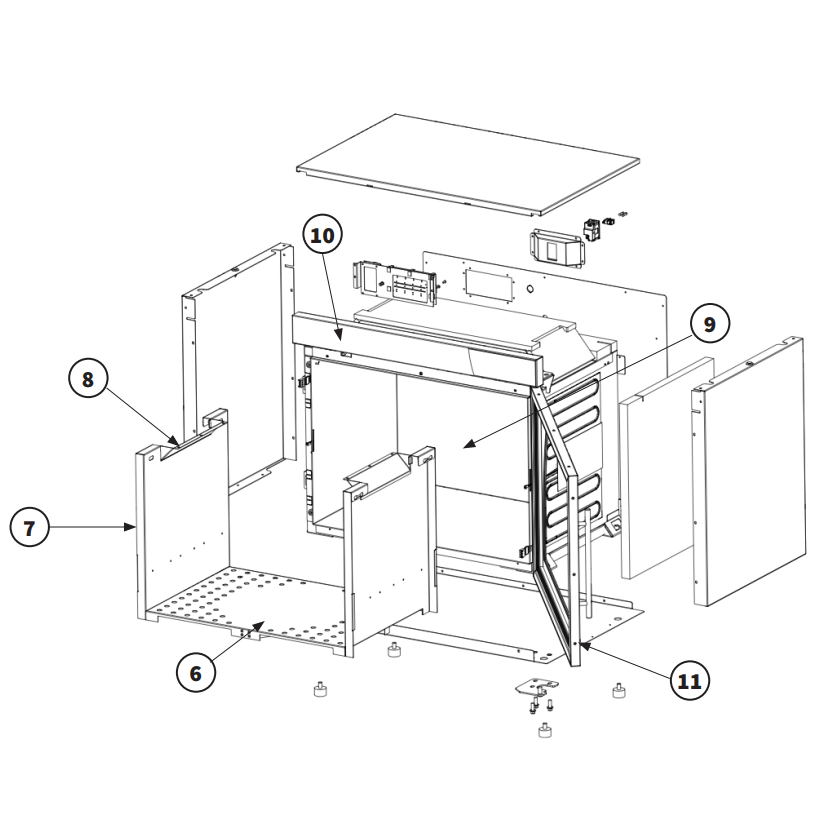

Assembly B

6. Panel, Insert, Bottom

  • 1033969: 18" depth
  • 1034988: 18" depth, deflector
  • 1033894: 24" depth

7. Panel, Insert, Side

  • 1033970: 18th depth
  • 1033893: 24" depth

8. 1019476: Panel, Insert, Duct

9. 1033861: Panel, Insert, Back

10. 5031144: Interface Assembly

11. Door Assembly

  • 5030794: Window, EC550BL
  • 5030709: Window, manual lock, EC550BL
  • 5030798: Solid, EC550BL
  • 5030796: Solid, manual lock, EC550BL

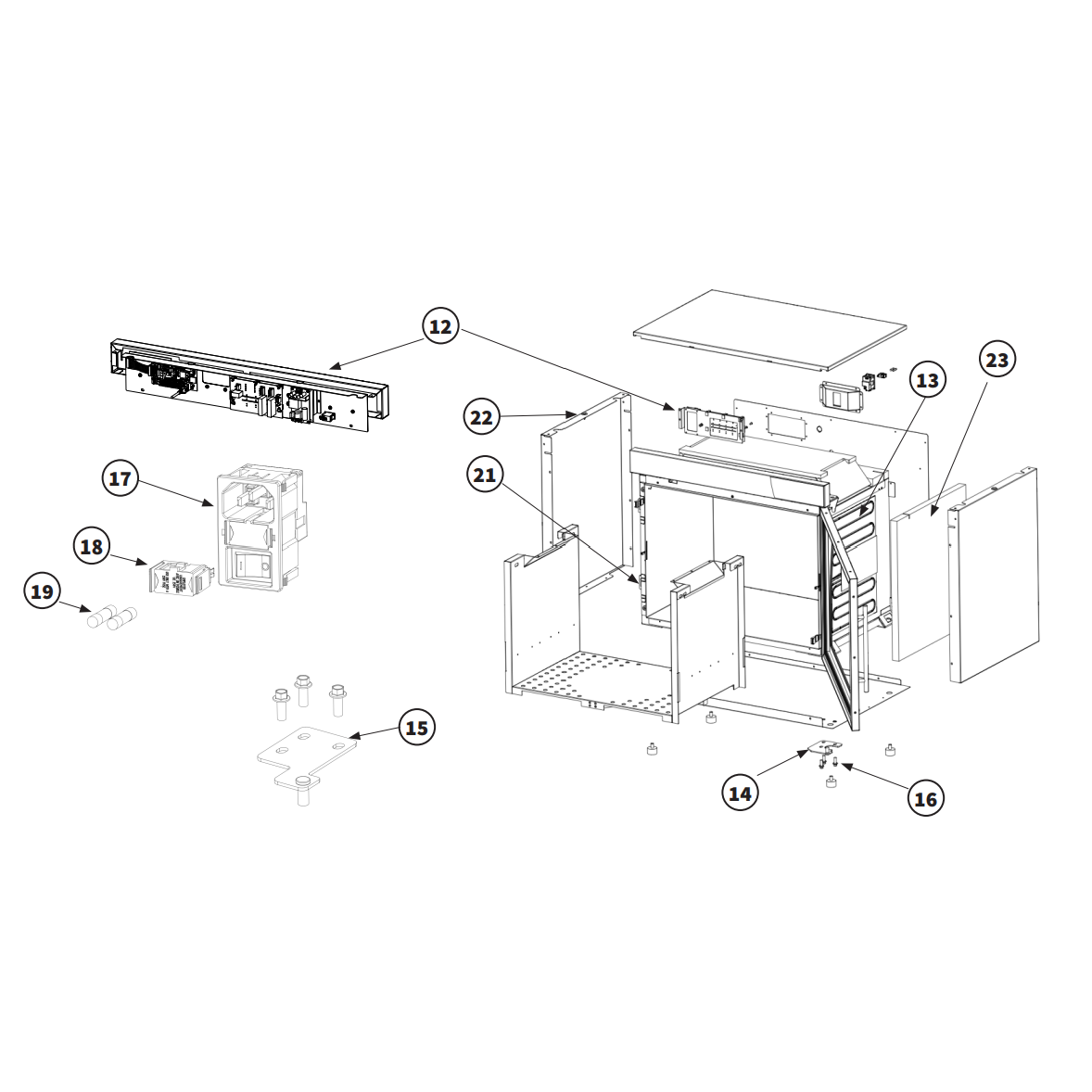

Assembly C

12. Chassis

  • 5031731: 2-zone, 120V, 18" depth
  • 5031732: 2-zone, 220/230V, 18" depth
  • 5031342: 3-zone, 120V, 24" depth
  • 5031489: 3-zone, 220/230V, 24" depth

13. EL-36692: Heat Pad, Pad Sensor and Hi-Limit

14. Lower Hinge Plate

  • 1033914: Freestanding
  • 1034484: built in, right hand
  • 1035560: built-in, left hand

15. 1034498: Upper Hinge Plate

16. *SC-24869: Screw, M8

17. SW-46492: Switch, Inlet, 250V, 10A

18. HS-46493: Switch, Fuse Box

19. FU-34955: Fuse, Inlet, 250V, 10A

20. CD-35030: Power Cord, NEMA, 5-15P, 120V

21. MA-27568: Magnet, Door Latch

22. *CL-29193: Clip, Nylon Trim Panel

23. 5031352: Insulation Kit

24. PG-39530: Plug, Liquid Tight

25. PG-39535: Plug, Pry Out

26. FE-29203: Feet, Rubber

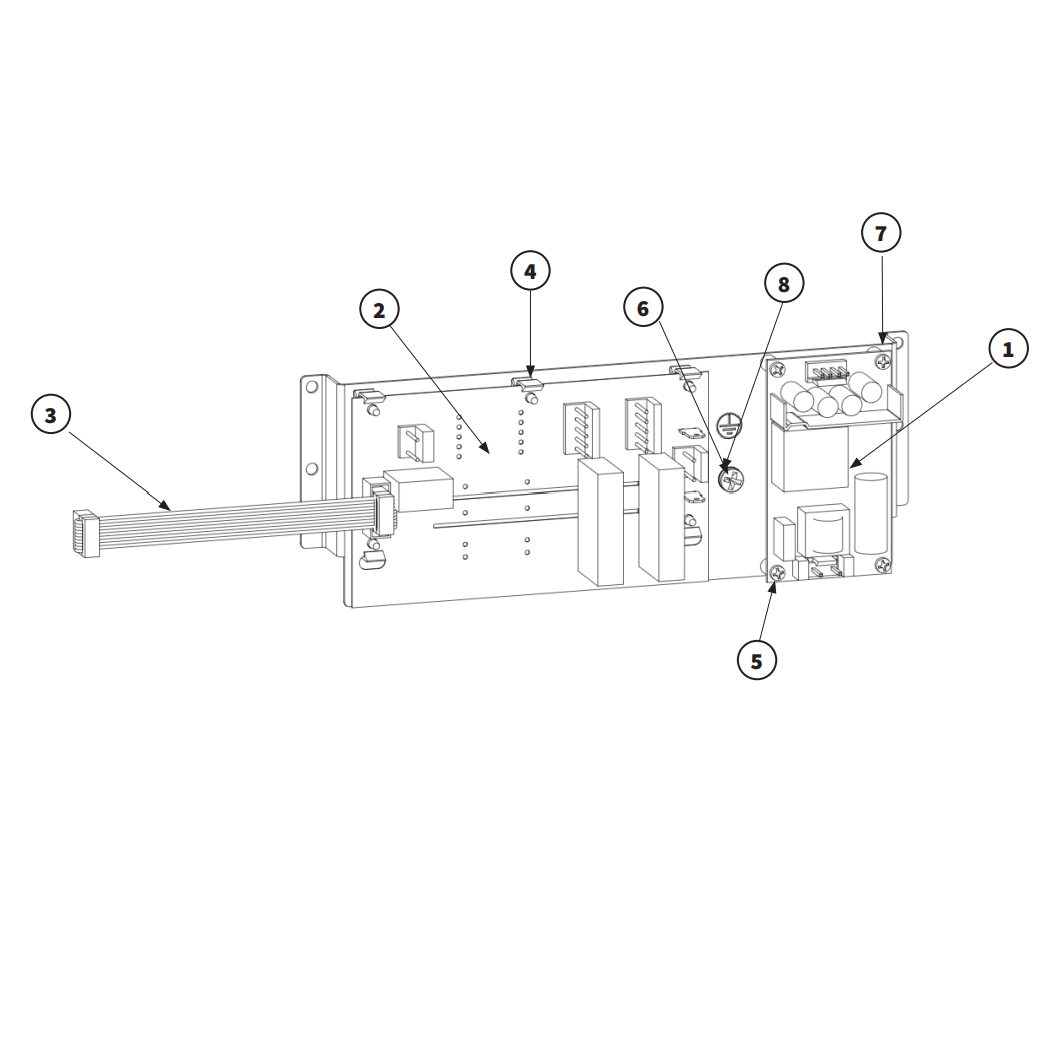

Electrical Chassis

1. BA-34965: Power Supply

2. Relay Board

  • BA-46669: 2-zone, 120V, 18" depth
  • BA-46670: 2-zone, 220?230V, 18" depth
  • BA-39301: 3-zone, 120V, 24" depth
  • BA-39303: 3-zone, 220/230V, 24" depth

3. CB-35193: Cable, Relay Board

4. CL-35031: Clip, Edge Holding

5. *SC-22270: Screw, M3-0.5 x 16mm, Phillips Head

6. *SC-36973: Ground Screw, M5m Zinc, Pan Phillips Head

7. *SP-29425: Spacer, Nylon 0.25" Dia x 0.375"

8. *WS-2467: Washer, Interlocking

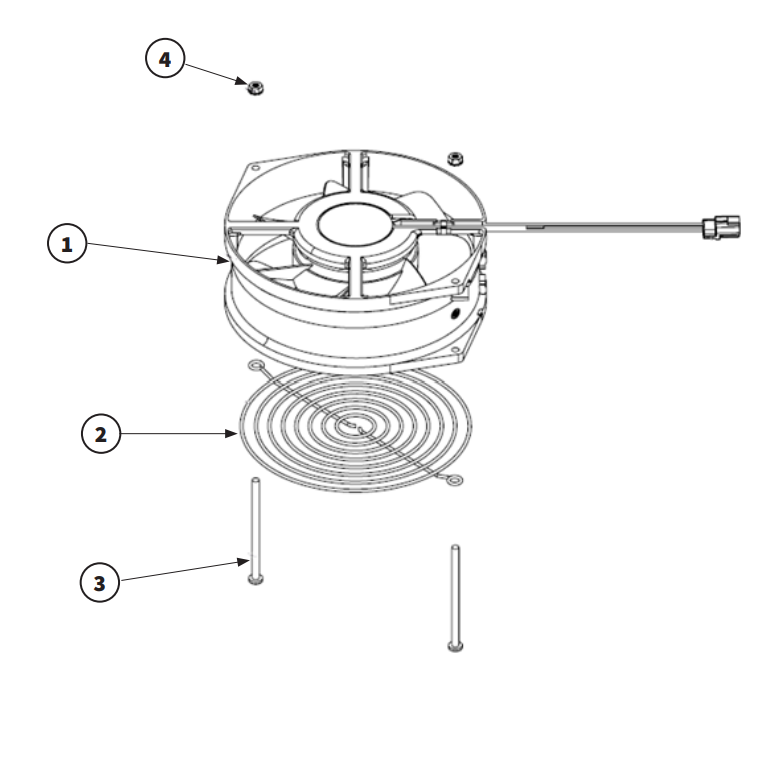

Fan

1. Fan

  • FA-47050: 120V
  • FA-47065: 220/230V

2. GD-47061: Fan Guard

3. *SC-36699: Screw, M4 x 0.7 x 45mm Pan

4. *NU-36319: Nut, M4, Keps, Zinc Plated

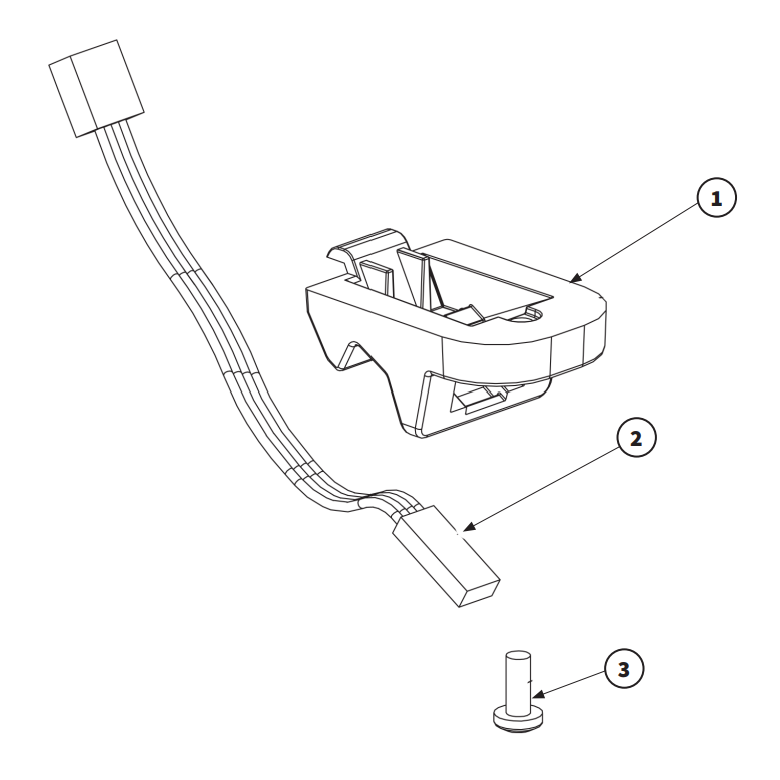

Cavity Sensor

1. BK-29882: Block, Sensor Mount

2. PR-37140: Cavity Sensor

3. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

Control Interface

1. 1034118: Panel, Top Trim

2. 5031155: Interface Assembly

3. BA-35309: Display Board, Fluid

4. CB-35192: Cable

5. CB-37645: USB Cable

6. CC-39754: Control Board, Datalogging

7.Shunt Jumper

  • CR-36952: 18" depth
  • CR-36952: 24: depth

8. *NU-22285: Nut, M3-0.5 Hex Nut

9. PE-46778: Panel, Overlay

10. *SC-22273: Screw, M4-0.7 x 11mm, Pan

11. *SC-36661: Screw, M3-0.5 x 16mm, PH HD

12. *SC-39856: Screw, 4-40 x 0.25" Pan

13. *SP-29425: Spacer, Support, 0.25" Dia x 0.375" Nylon

14. *SP-33707: Spacer, Support, 0.25" Hex, Nylon

15. SW-35416: Switch, Door

16. *WS-23148: Washer, 6-32, Flat, Nylon
