Full View

Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

Interior View

Electrical Chassis

Fan Assembly

Cavity Sensor

Control Interface

Parts List

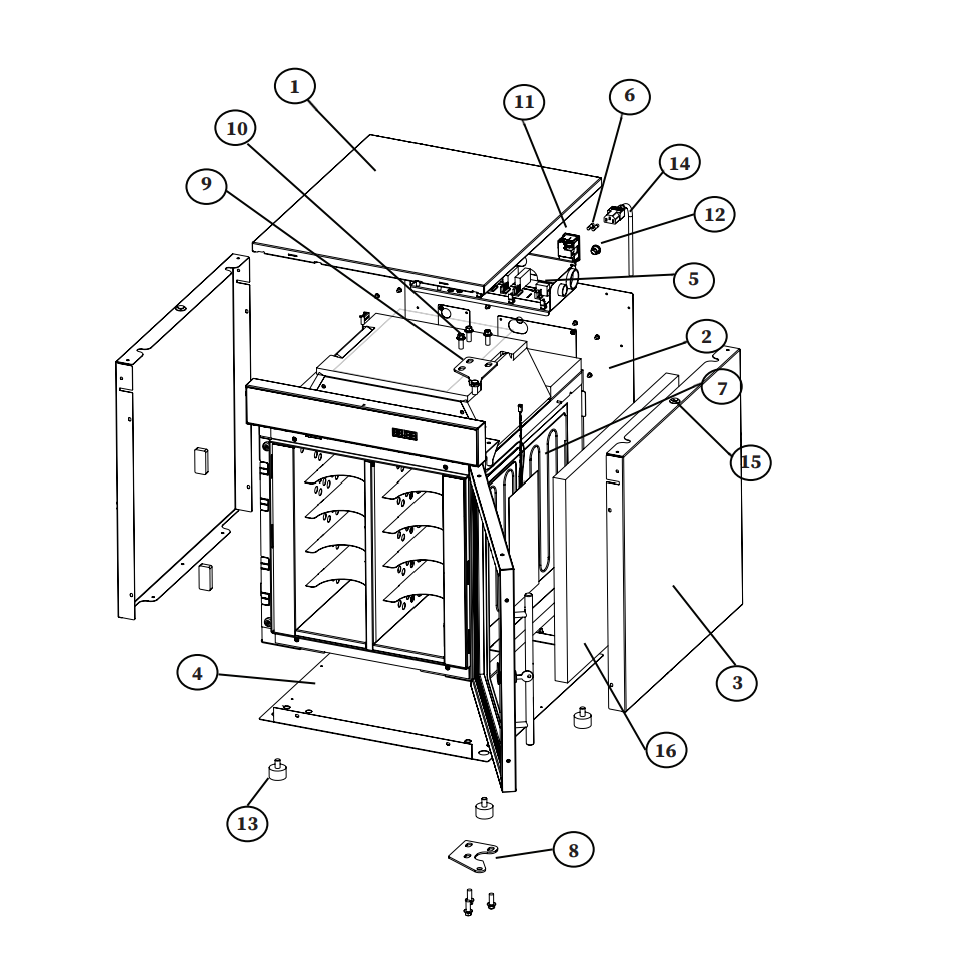

Full View

1. 1014271: Panel, Top Cover

2. 1031952: Panel, Rear Cover

3. 1014268: Panel, Side Cover

4. 1014270: Panel, Bottom Cover

5. Chassis

  • 5030114: 120V
  • 5030115: 230V

6. FU-34955: Fuse, 250V, 10A Fast Acting

7. EL-36692: Heater Pad, W/ Sensor And Hi-Limit

8. Lower Hinge

  • 5015523: Right
  • 5018611: Left

9. Upper Hinge

  • 5015522: Right
  • 5018610: Left

10. SC-27046: Screw, M8

11. 5029268: Switch Assembly, 10A

12. PG-39535: Plug

13. FE-29203: Bumper Feet, Rubber

14. CD-35030: Power Cord, Nema 5-15P, 120V

15. CL-29193: Clip, Nylon Trim Panel

16. 5018011: Insulation Kit

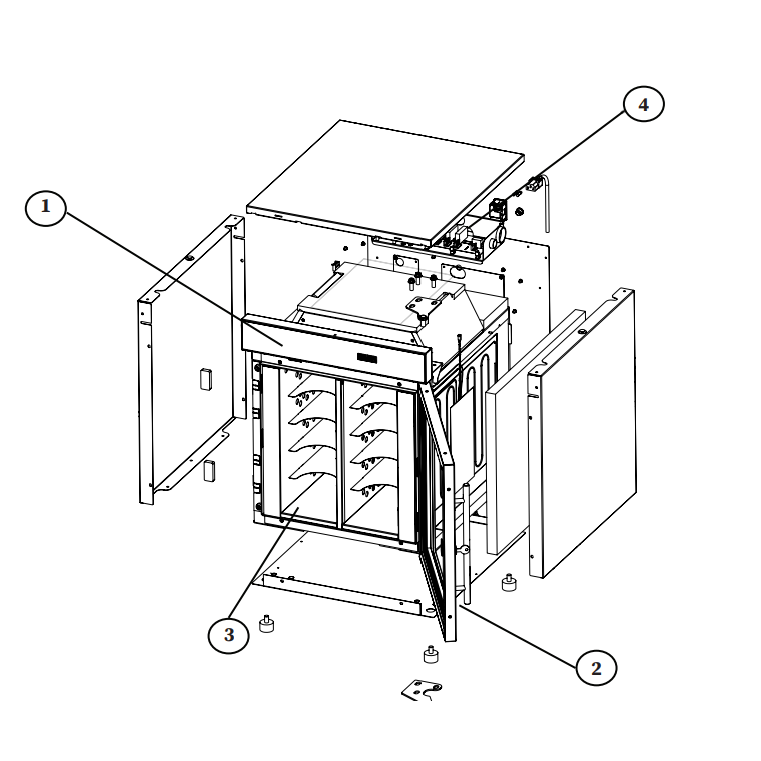

Interior View

1. 5029482: Interface Assembly W. Datalogger

2. 5029494: Door Assembly

3. 5028949: Shelf System

4. CC-46468: Control Assembly, IV FIFO

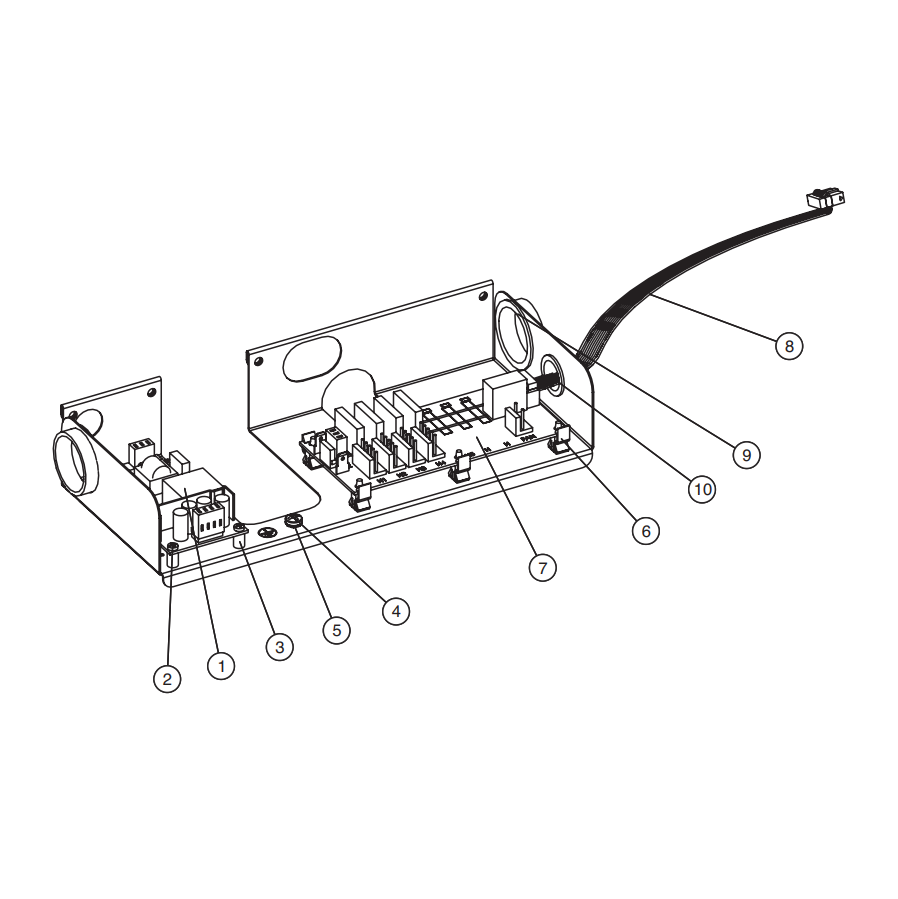

Electrical Chassis

1. BA-34965: Power Supply

2. *SC-22270: Screw, M3-0.5 x 16mm, phillips Head

3. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon

4. *SC-36973: Ground Screw, Zinc, Pan Phillips Head, Metric , M5

5. *WS-2467: Washer, Interlocking

6. CL-35031: Clip, Edge Holding

7. Relay Board, 2-Zone

  • BA-46669: 120V
  • BA-46670: 230V

8. CB-35193: Cable, Relay Board

9. *BU-3013: Bushing, Snap, 1-1/2"

10. *BU-3007: Bushing, Snap, 7/8", Black

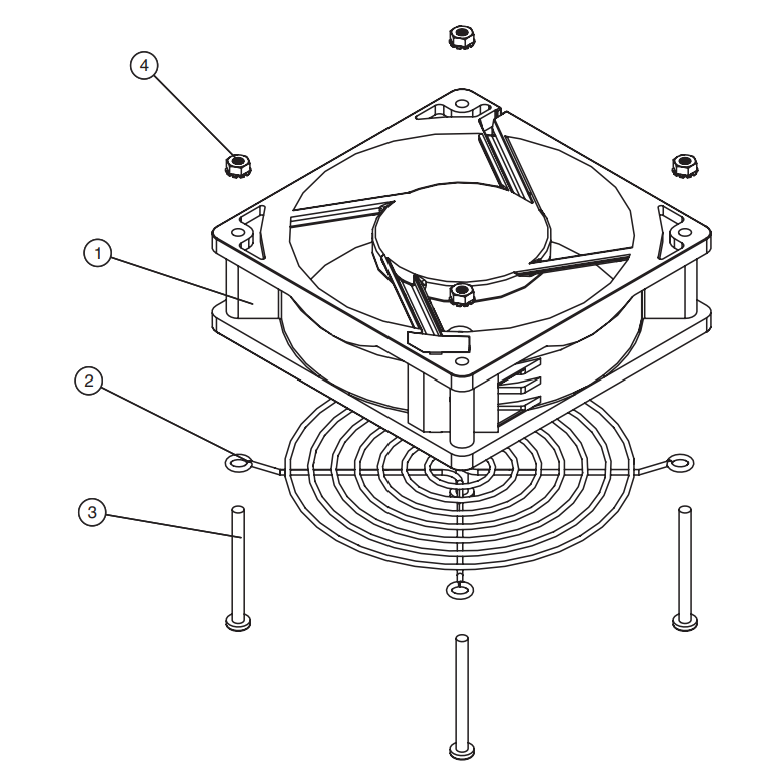

Fan Assembly

1. FA-39406: Fan

2. GD-2396: Fan Guard

3. *SC-28142: Screw, M4 x 0.7 x 45mm Pan

4. *NU-36319: Nut, M4 Keps, Zinc Plated

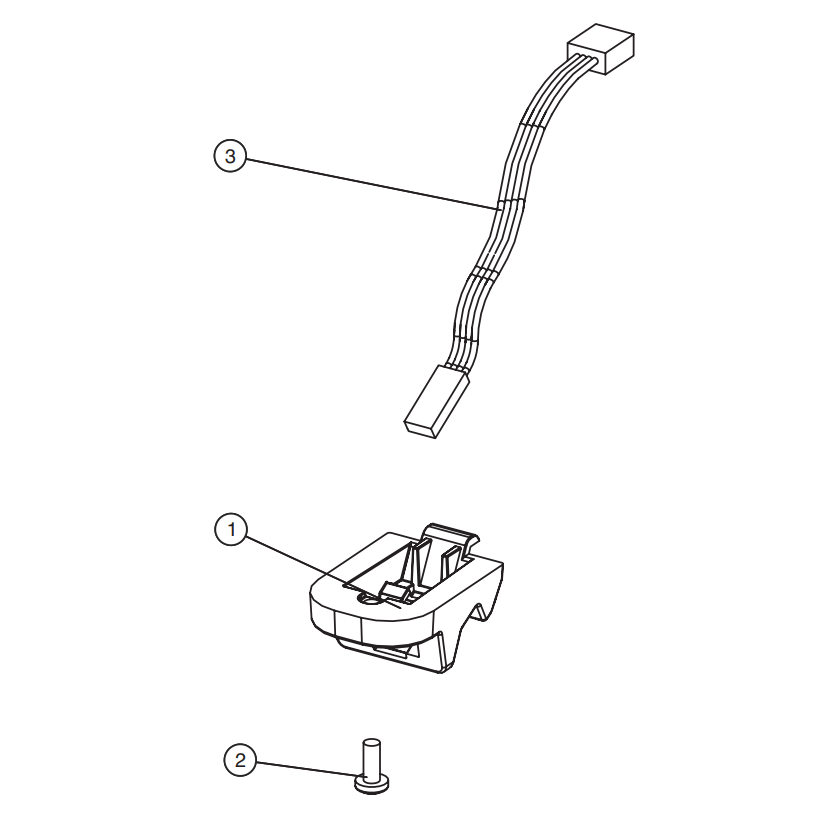

Cavity Sensor

1. BK-29882: Block, Sensor Mount

2. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

3. PR-37140: Cavity Sensor

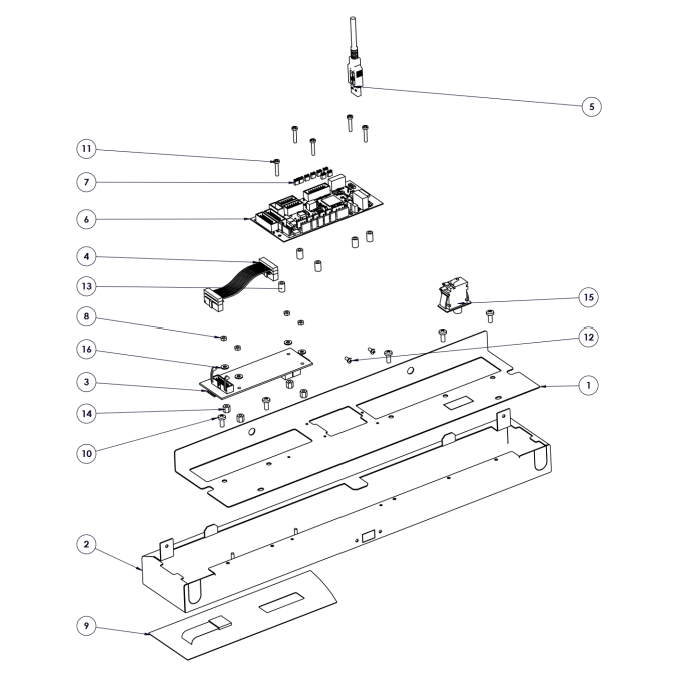

Control Interface

1. 1016561: Panel, Front Top Trim

2. 5017925: Interface Assembly

3. BA-35309: Circuit Board, Fluid Display

4. CB-35192: Cable, 3.5" Display

5. CB-37645: USB Cable, 20"

6. CC-39754: Board, Circuit, Control

7. CR-36952: Shunt Jumper

8. *NU-22285: Nut, M3-0.5 Hex Nut

9. PE-46541: Panel Overlay

10. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

11. *SC-36661: Screw, M3-0.5 x 16mm, PH HD

12. *SP-39856: Screw, 4-40 x 1/4" Pan

13. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon

14. *SP-33707: Spacer, Support, NYL, 1.4"

15. SW-35416: Switch, Button

16. *WS-23148: Washer, 6-32, Flat, NYL
