KB-Fluid Warmers

For models EC350L EC400L DC250L DC400L

Full View

Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

Interior View

Electrical Chassis

Fan Assembly

Cavity Sensor

Control Interface

parts marked with * only sold by request

Parts List

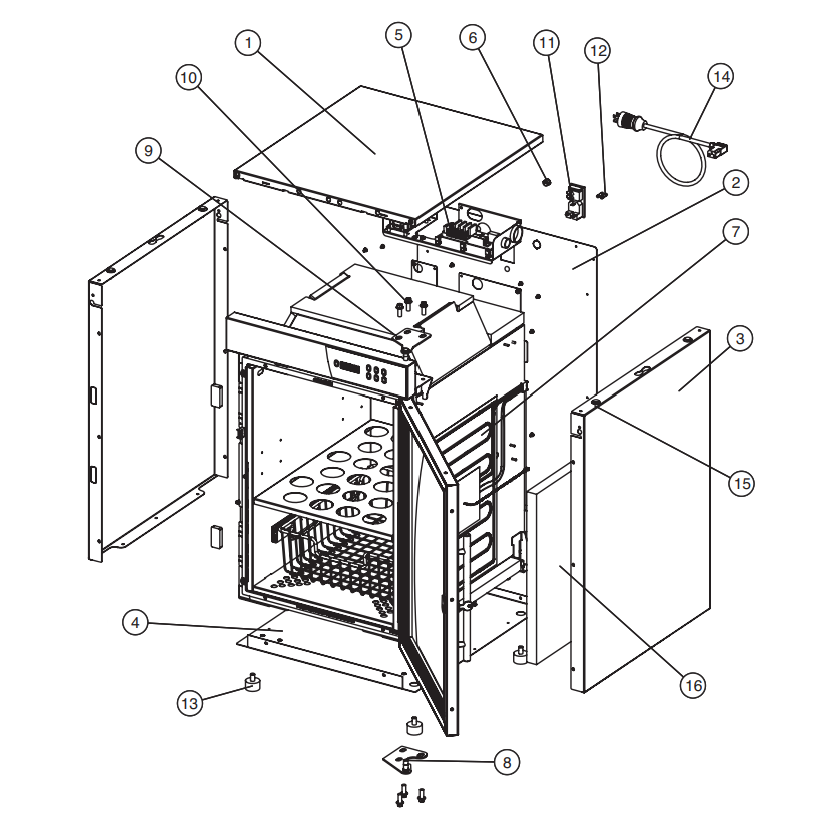

Full View

1. Panel, Top Cover

  • 1014271: EC250L, EC350L
  • 1029428: DC250L

2. Panel, Rear Cover

  • 1031954: EC350L
  • 1031952: EC250L, DC250L

3. Panel, Side Cover

  • 1014275: EC350L
  • 1014268: EC250L

4. Panel Bottom Cover

  • 1014270: EC250L, EC350L
  • 1029443: DC250L

5. Chassis

  • 5017792: 120V
  • 5017795: 230V

6. PG-3344: Plug, 1/2" Hole

7. EL-36692: Heater Pad, W/ Sensor And Hi-Limit

8. Lower Hinger

  • 5015523: Right Hand
  • 5018611: Left Hand

9. Upper Hinge

  • 5015522: Right Hand
  • 5018610: Left Hand

10. SC-27046: Screw, M8 x 1.25 x 20mm Hex Flg

11. SW-46492: Switch, Fuse Box

12. FU-34955: Fuse, Glass Envelope

13. FE-29203: Bumper Feet, Rubber

14. CD-35030: Power Cord, Nema 5-15P, 120V

15. CL-29123: Clip, Nylon Trim Panel

16. 5018011: Insulation Kit

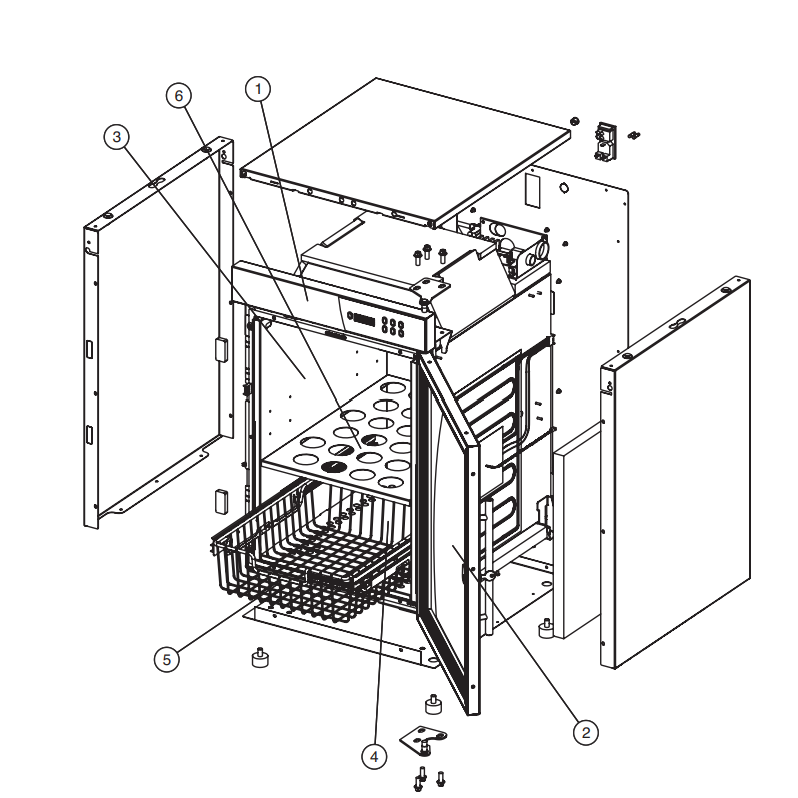

Interior View

1. Interface Assembly

  • 5021918: EC250L, EC350L
  • 5028969: w/datalogger - EC250L, EC350L
  • 5028029: DC250L

2. Door Assembly

  • 5017763: S/S solid, 3.5 cu. ft.
  • 5017999: S/S window, 3.5 cu. ft.
  • 5018002: S/S solid w/lock, 3.5 cu. ft.
  • 5018008: S/S window w/lock, 3.5 cu. ft.
  • 5018001: S/S solid w/lock, 2.5 cu. ft.
  • 5018007: S/S window w/lock, 2.5 cu. ft.
  • 5017762: S/S solid, 2.5 cu. ft.
  • 5017998: S/S window, 2.5 cu. ft
  • 5027970: P/S window, 2.5 cu. ft.
  • 5027973: P/S window w/lock, 2.5ft cu. ft.

3. Panel, Blanket Insert Side

  • 1016777: 3.5 cu. ft.
  • 1019459: 2.5 cu. ft.

4. 1025218: Panel, Blanket Insert Bottom

5. 5021956: Basket Kit

6. 1025195: Panel, Shelf

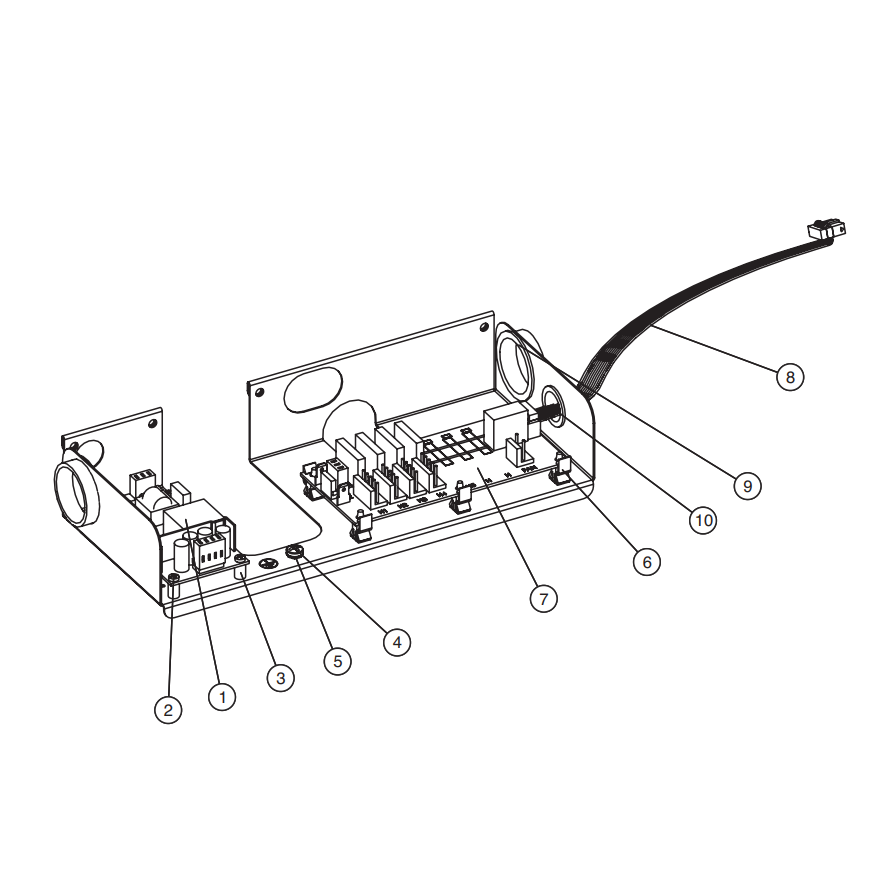

Electrical Chassis

1. BA-34965: Power Supply

2. *SC-22270: Screw, M3-0.5 x 16mm, Phillips Head

3. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon

4. *SC-36973: Ground Screw, Zinc, Pan Phillips Head , Metric, M5

5. *WS-2467: Washer, Interlocking

6. CL-35031: Clip, Edge Holding

7. Relay Board

  • BA-46669: 120V
  • BA-46670: 230V

8. CB-35193: Cable, Relay Board

9. *BU-3013: Bushing, Snap, 1-1/2"

10. *BU-3007: Bushing, Snap, 7/8", Black

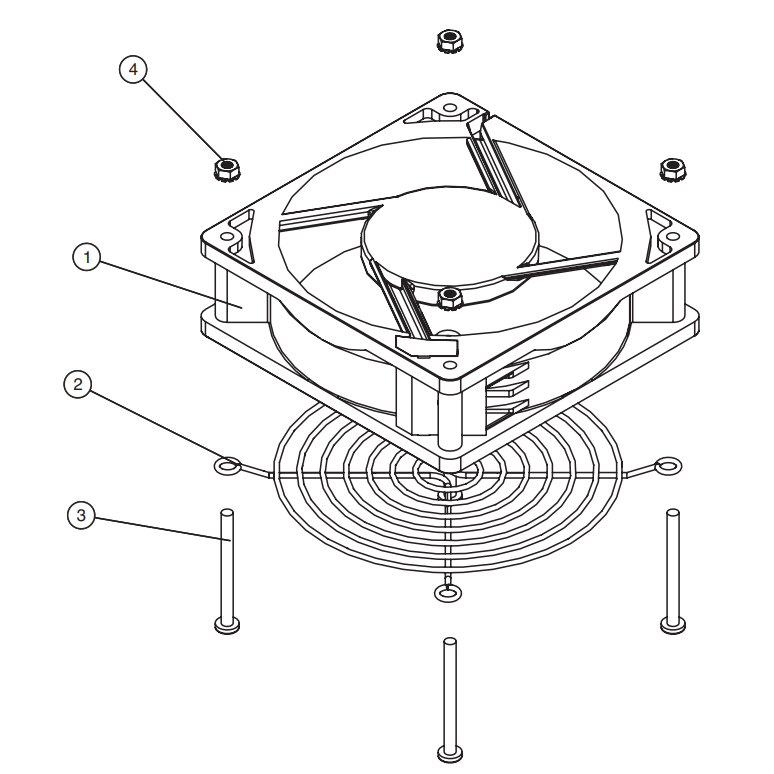

Fan Assembly

1. FA-39406: Fan

2. GD-2396: Fan Guard

3. *SC-28142: Screw, M4 x 0.7 x 45mm Pan

4. *NU-36319: Nut, M4, Keps, Zinc Plated

Cavity Sensor

1. BK-29882: Block, Sensor Mount

2. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

3. PR-47194: Cavity Sensor

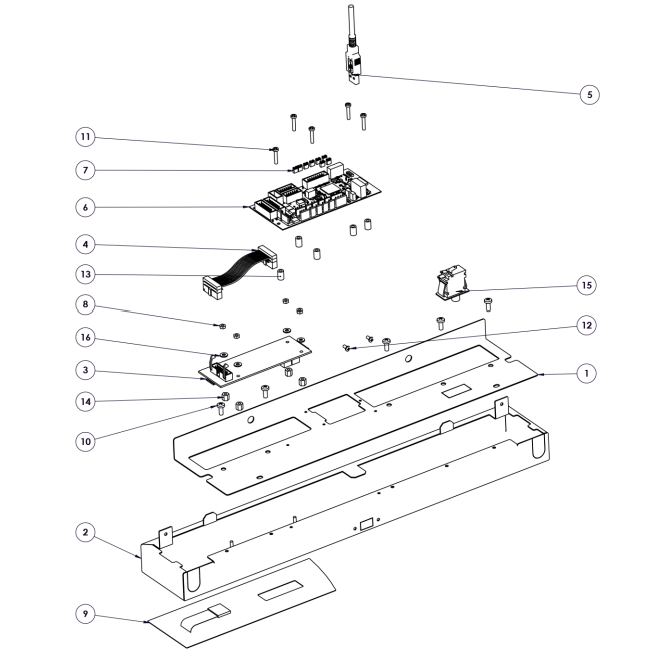

Control Interface

1. Panel, Front Top Trim

  • 1016561: S/S - EC250L, SC350L
  • 1029430: DC250L

2. Interface Assembly

  • 5017925: 18.5" - EC250L, EC350L
  • 5027968: DC250L

3. BA-35309: Circuit Board, Fluid Display

4. CB-35192: Cable

5. CB-37645: USB Cable, 20"

6. CC-39745: Board, Circuit, Control

7. CR-36952: Shunt Jumper

8. *NU-22285: Nut, M3-0.5 Hex Nut

9. Panel Overlay

  • PE-46500: EC250L, EC350L, Control
  • PE-46246: DC250L

10. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

11. *SC-36661: Screw, M3-0.5 x 16mm, PH HD

12. *SC-39856: Screw, 4-40 x 1/4" Pan

13. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon

14. *SP-33707: Spacer, Support, NYL, 1.4"

15. SW-35416: Switch, Button

16. *WS-23148: Washer, 6-32, Flat, NYL
