KB-EC Series Combination Warmer

For models EC1350BL EC1850BL

Full View

Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

Interior View

Electrical Chassis

Power Inlet Assembly

Interface Assembly

Fan Assembly

Cavity Sensor

parts marked with * only sold by request

Parts List

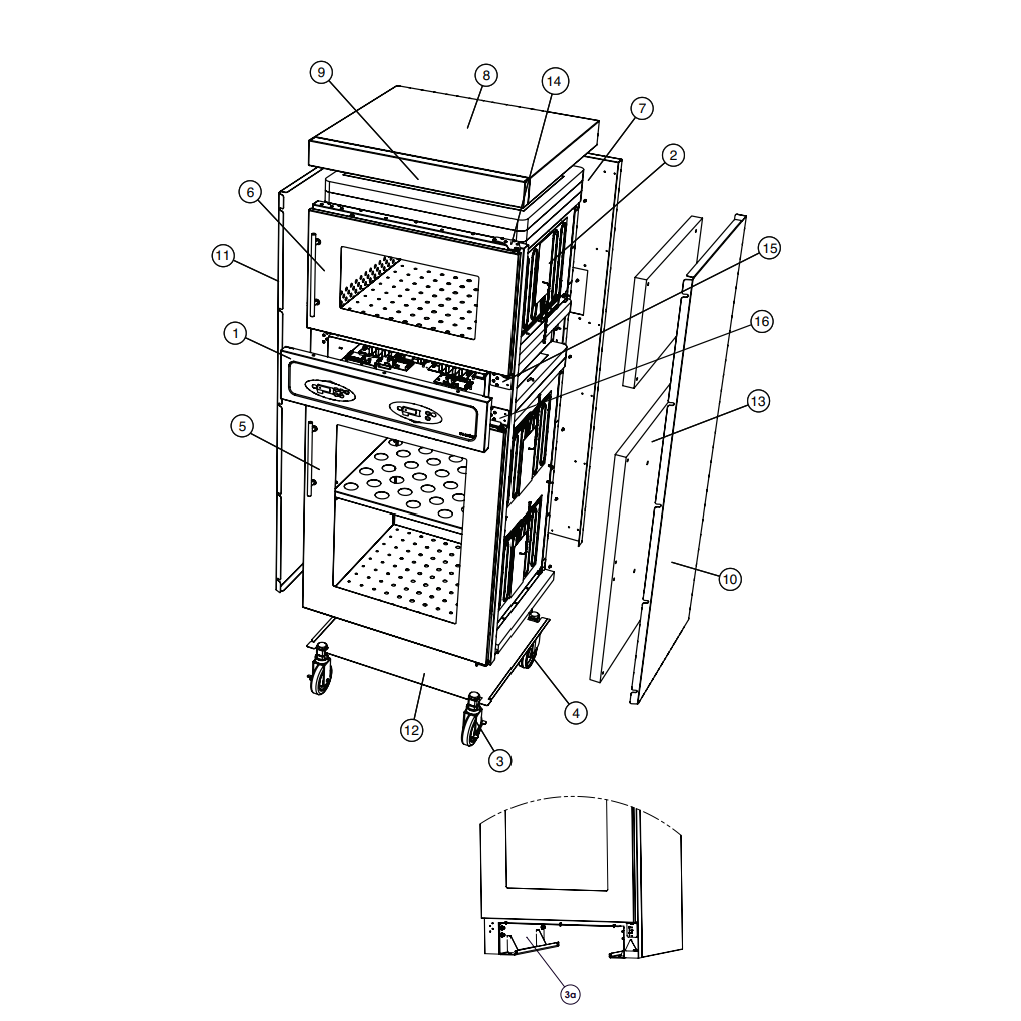

Full View

1. 5029706: Assembly, Interface, EC1350BL/1850BL

2. Element, Heater Pad

  • EL-39472: 16" x 12", 13.3 ft3
  • EL-46555: 13.3 ft3
  • EL-36692: 16" x 12", 18.5ft3

3. CS-35290: Caster, 5" Wheel, W/Brake, 18.5ft3

3.1. FE-28909: Feet, Leveling, 18.5ft3 (not shown)

3a. 5030489: Assembly, Base, Seismic, 13.3ft3

4. CS-24875: Caster, 5" Wheel, Swivel, 18.5ft3

4.a. *FT-28910: Fitting, Threaded Tube Insert, 18.5ft3

5. Assembly, Door

  • 5027916: window, RH, 13.3ft3
  • 502819: window, LH, 13.3ft3
  • 5029834: window, RH, lock, 13.3ft3
  • 5029833: window, LH, lock, 13.3ft3
  • 5029840: solid, LH, lock, 13.3ft3
  • 5029837: solid, LH, 13.3ft3
  • 5029839: solid, RH, lock, 13.3ft3
  • 5029836: solid, RH, 13.3ft3
  • 5025132: window, RH, 18.5ft3
  • 5025405: window, LH, 18.5ft3
  • 5025410: window, RH, lock, 18.5ft3
  • 5025411: window, LH, lock, 18.5ft3
  • 5025431: solid, LH, lock, 18.5ft3
  • 5025429: solid, LH, 18.5ft3
  • 5025430: solid, RH, lock, 18.5ft3
  • 5025412: solid, RH, 18.5ft3

6. Assembly, Door

  • 5027915: window, 13.3ft3
  • 5029835: solid, 13.3ft3
  • 5029820: window, lock, 13.3ft3
  • 5029838: solid, lock, 13.3ft3
  • 5025433: solid, 18.5ft3
  • 5025434: window, lock, 18.5ft3
  • 5025435: solid, lock, 18.5ft3

7. Panel, Back

  • 1031741: 13.3ft3
  • 1024790: 18.5ft3

8. Panel, Top Cover

  • 1031785: 13.3ft3
  • 1024923: 18.5ft3

9. Panel, Top Trim

  • 1031774: 13.3ft3
  • 1024923: 18.5ft3

10. Panel, Side, RH

  • 1031746: 13.3ft3
  • 1024789: 18.5ft3

11. Panel, Side, LH

  • 1031746: 13.3ft3
  • 1024789: 18.5ft3

12. *5025101: Panel, Bottom

12a. 1031542: Panel, Toe Kick

13. Insulation, Package

  • 5029803: 13.3ft3
  • 5025306: 18.5ft3

14. Assembly, Hinge, Upper

  • 5025491: RH, 18.5ft3
  • 5025492: LH, 18.5ft3

15. Assembly Hinger, Lower RH, Upper LH

  • 1031863: 13.3ft3
  • 5025493: 18.5ft3

16. Assembly, Hinge, Lower LH, Upper RH

  • 1031964: 13.3ft3
  • 5025494: 18.5ft3

17. *PI-29192: Pin, Press Fit Hinge

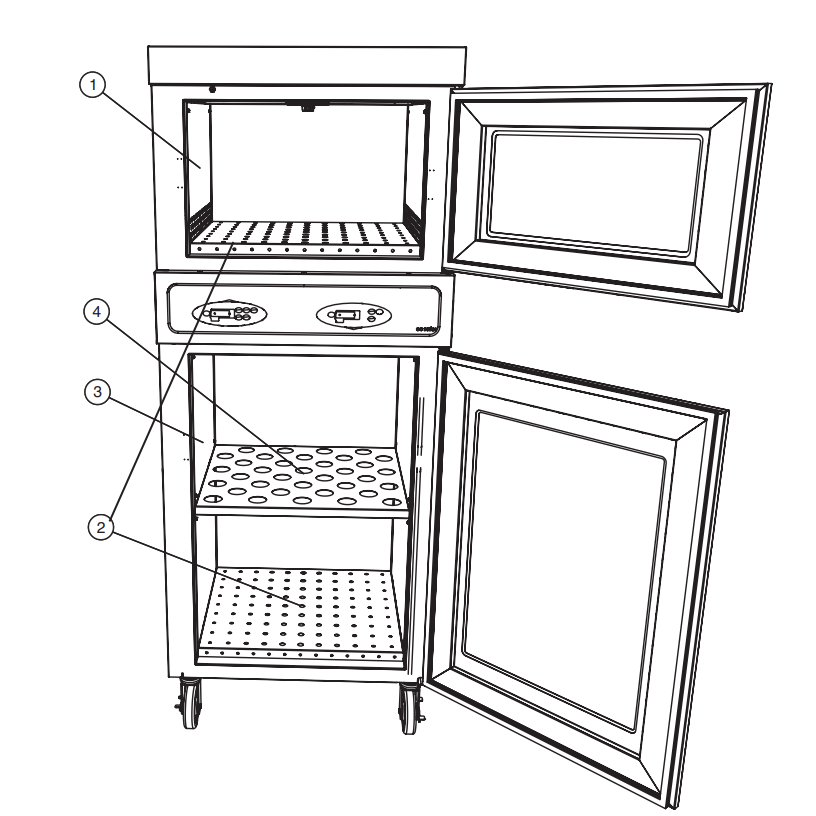

Interior View

1. Panel, Insert Side, Fluid Cavity

  • 1031538:13.3ft3
  • 1024771: 18.5ft3

2. Panel, Shelf, Bottom

  • 1032029: 13.3ft3
  • 1024766: 18.5ft3

3. Panel, Insert Side, Blanket Cavity

  • 1031536: 13.3ft3
  • 1025073: 18.5ft3

4. Panel, Shelf

  • 1031787: 13/3ft3
  • 1024763: 18.5ft3

5. 1026148: Clip, Shelf

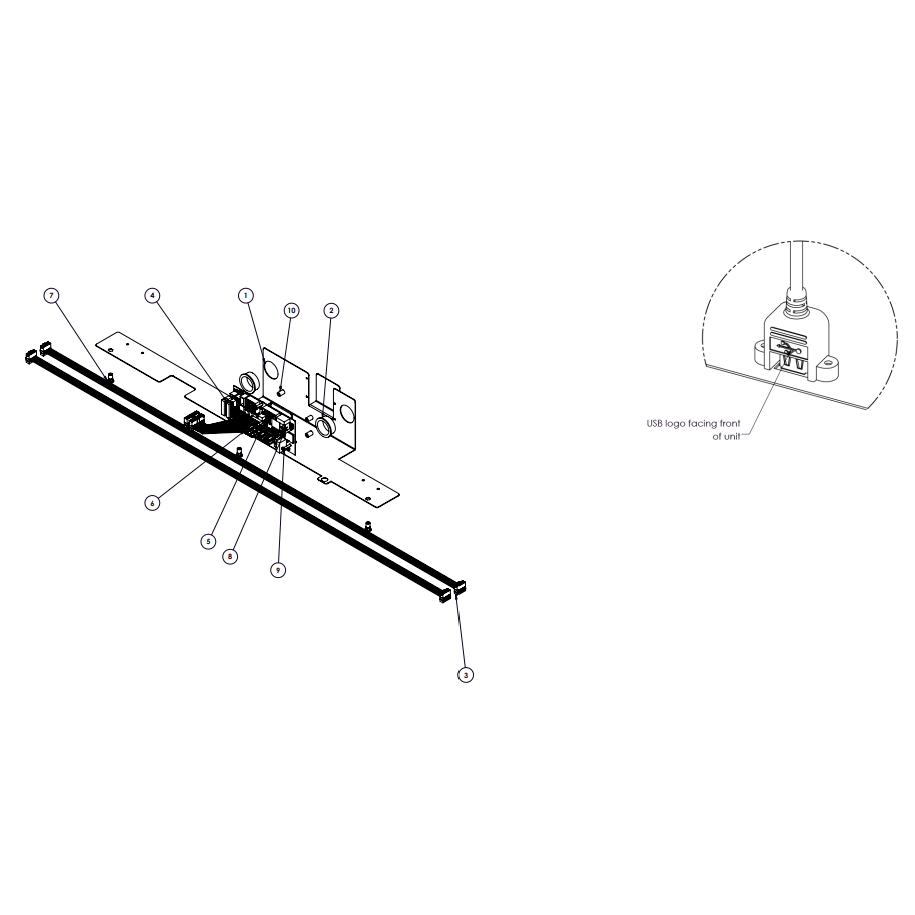

Electrical Chassis

1. 1037340: Bracket, Control Board

2. *BU-3378: 1 1/8" Snap Bushing

3. CB-35193: Cable, Relay Board

4. CB-38543: Cable, 12" Display

5. CC-39754: Board, Circuit, Control

6. CR-36952: Shunt Jumper

7. *NU-37267: Nut, Hex Insert M4

8. *SC-35824: Screw, M3-0.5 x 16mm, PH HD

9. *SC-36661: Screw, M3x0.5x25mm Pan

10. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon

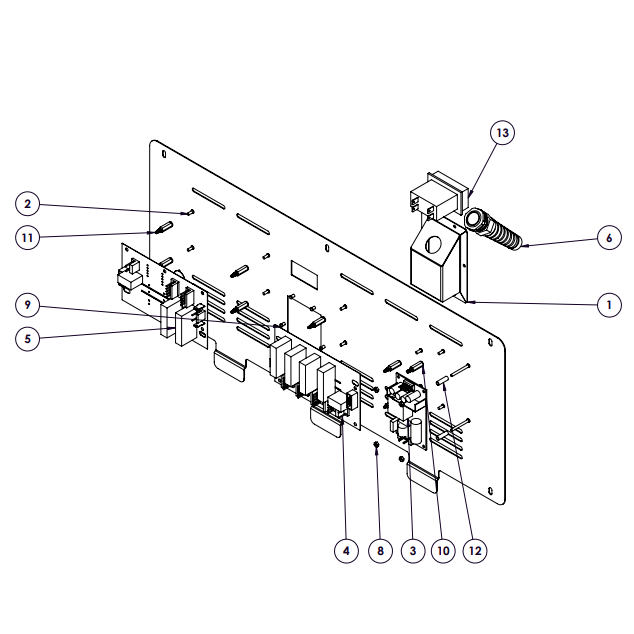

Power Inlet Assembly

1. 1035776: Bracket, Cord

2. *5032473: Assembly, Weld Stud

3. BA-34965: Power Supply

4. Relay Board, 4-Zone

  • BA-39302: 120V
  • BA-39304: 230V

5. Relay Board, 2-Zone

  • BA-46669: 120V
  • BA-46670: 230V

6. BU-34836: Bushing, Straight, Strain Relief

7. *EV-28115: Envelope

8. *NU-22285: Nut, M3-0.5 Hex Nut

9. *RI-2100: Rivet, Blind, #44, STNLS

10. *SP-46570: Spacer, Stand Off Male-Female

11. *SP-46671: Spacer, Stand Off Female-Board

12. *SP-47752: Spacer, M3

13. SW-33858: Switch

Interface Assembly

1. BA-35309: Circuit Board, Fluid Display

2. *NU-22285: Nut, M3-0.5 Hex Nut

3. *SP-33707: Spacer, 1/4" Hex, Nylon

4. BA-34868: Circuit Board, Display

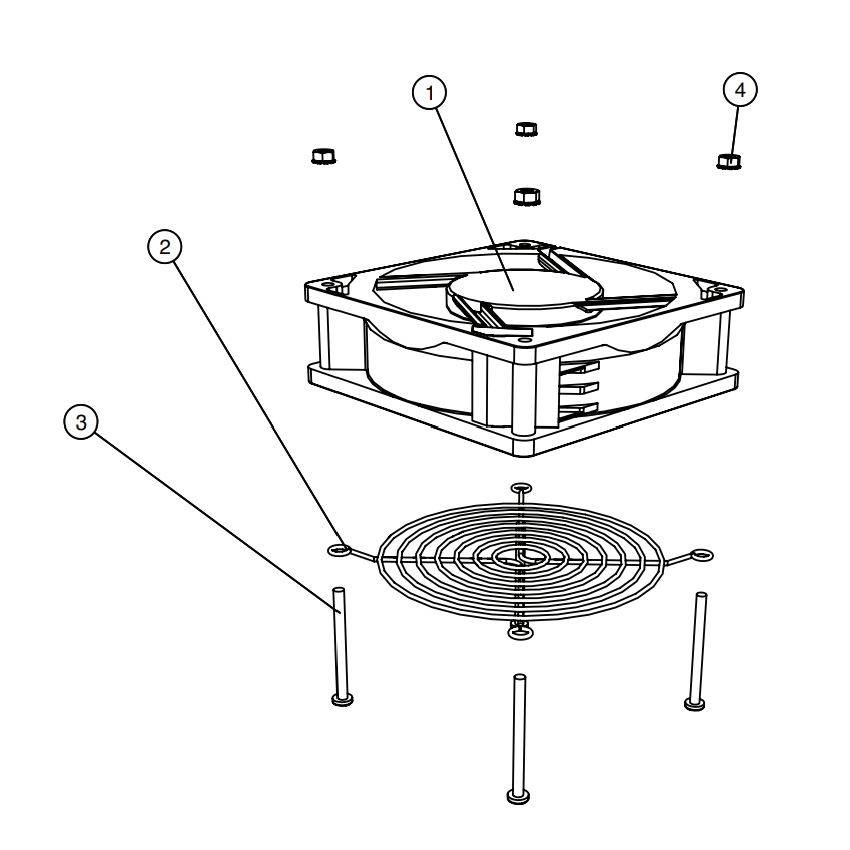

Fan Assembly

1. FA-39406: Fan

2. 1035493: Fan Guard

3. *SC-29261: Screw, M4 x 0.7 x 50mm Pan

4. *NU-36319: Nut, M4, Keps, Zinc Plated

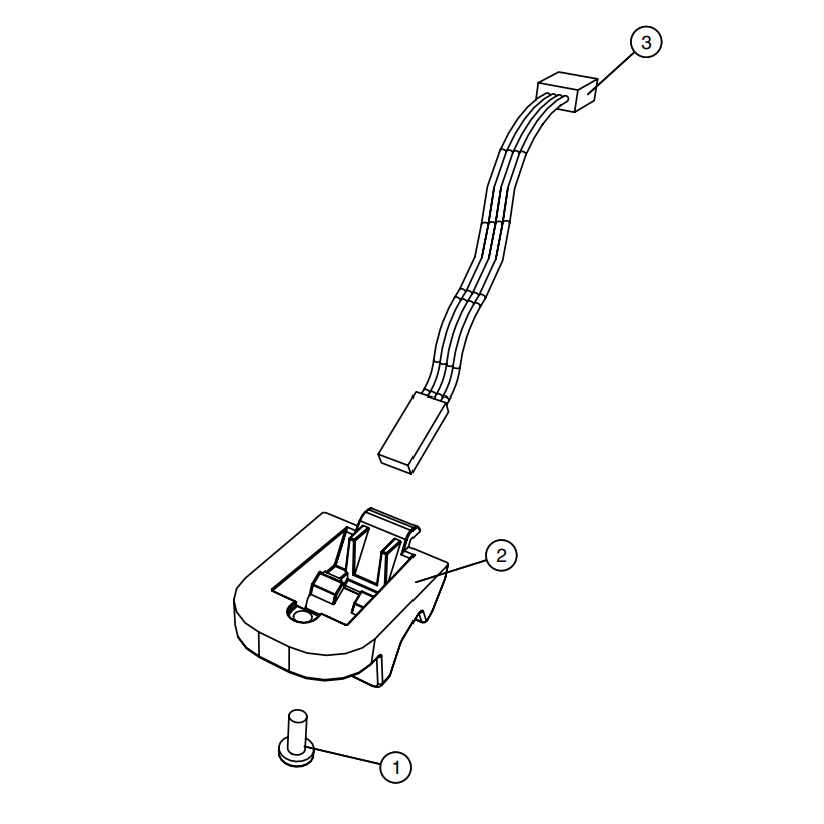

Cavity Sensors

1. *SC-22273: Screw, M4 x 0.7 x 10mm Pan

2. BK-29882: Sensor Mounting Block

3. PR-38590: Probe

Accessories

1. Built-in Trim Kit

  • 5029906: 13.3ft3
  • 5027709: 18.5ft3

2. 5021814: Foot Kit

3. 5032891: Floor Mounting Hardware

4. LK-36962: Lock for Door Handle

5. Shelf Kit

  • 5031266: 13.3ft3
  • 5031264: 18.5ft3

6. 5032535: TempTrak Transmitter & Probe Kit 900MHZ

Manuals

User Manual

Parts Manual
