KB-Blanket Warmers
For models EC250 EC350 EC400 EC750 DC250 DC350 DC400 DC750

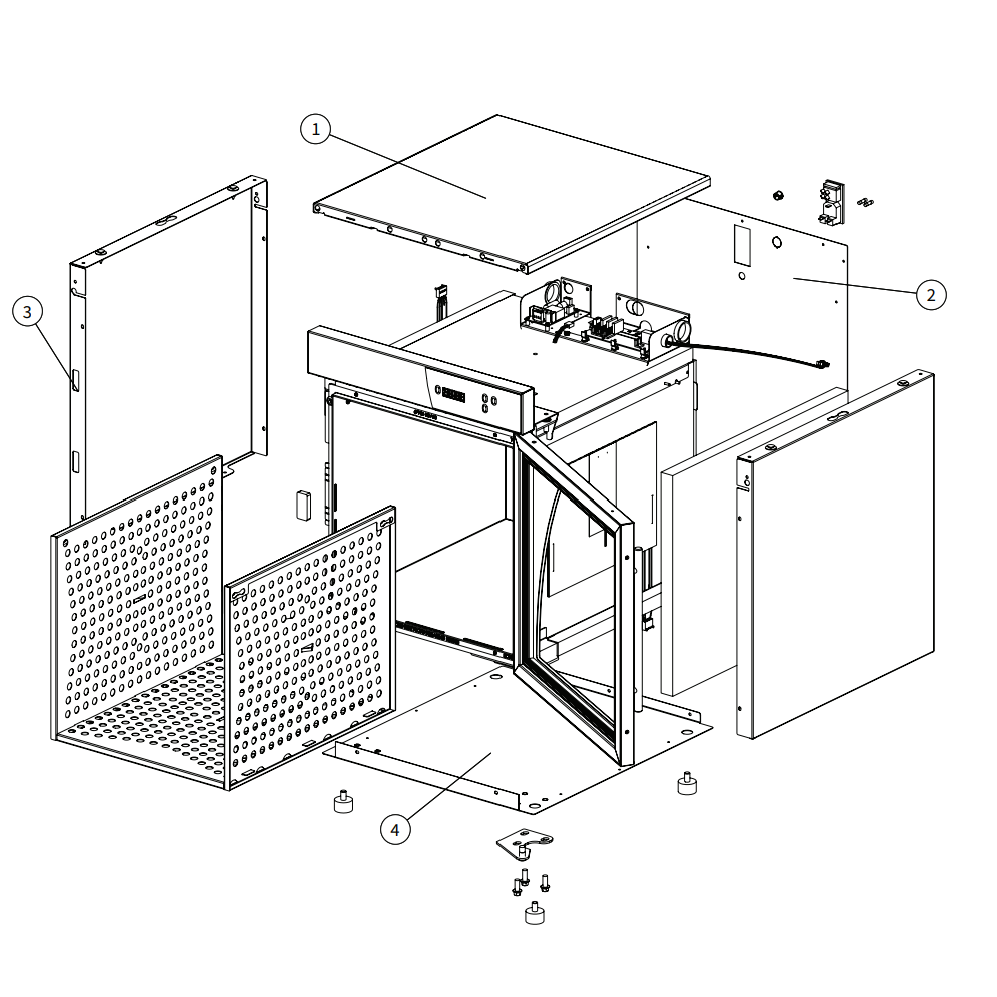

Assembly A
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

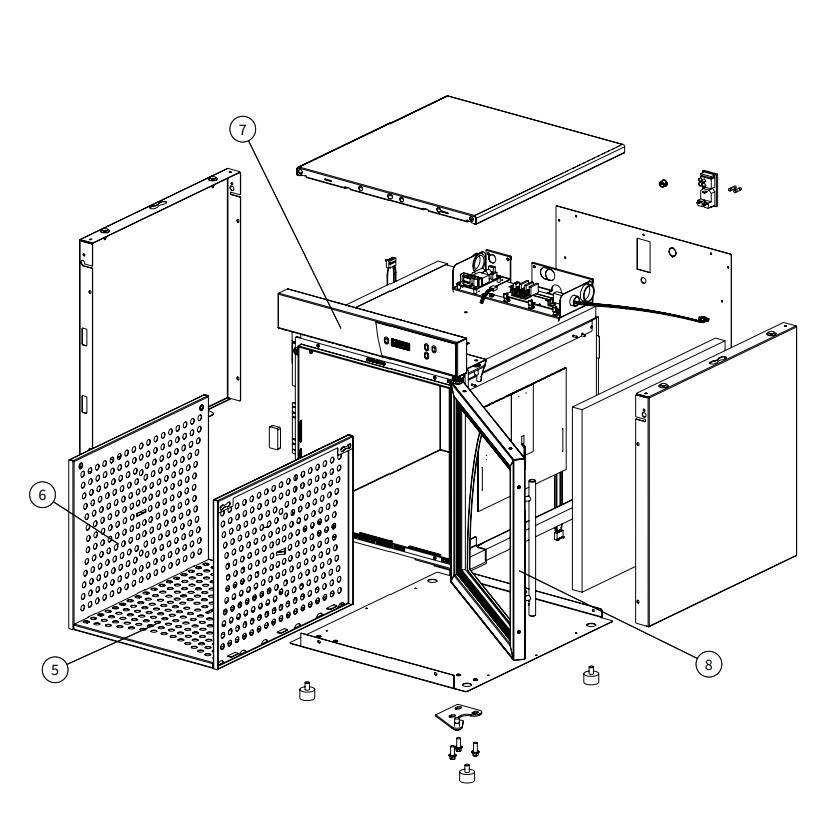

Assembly B

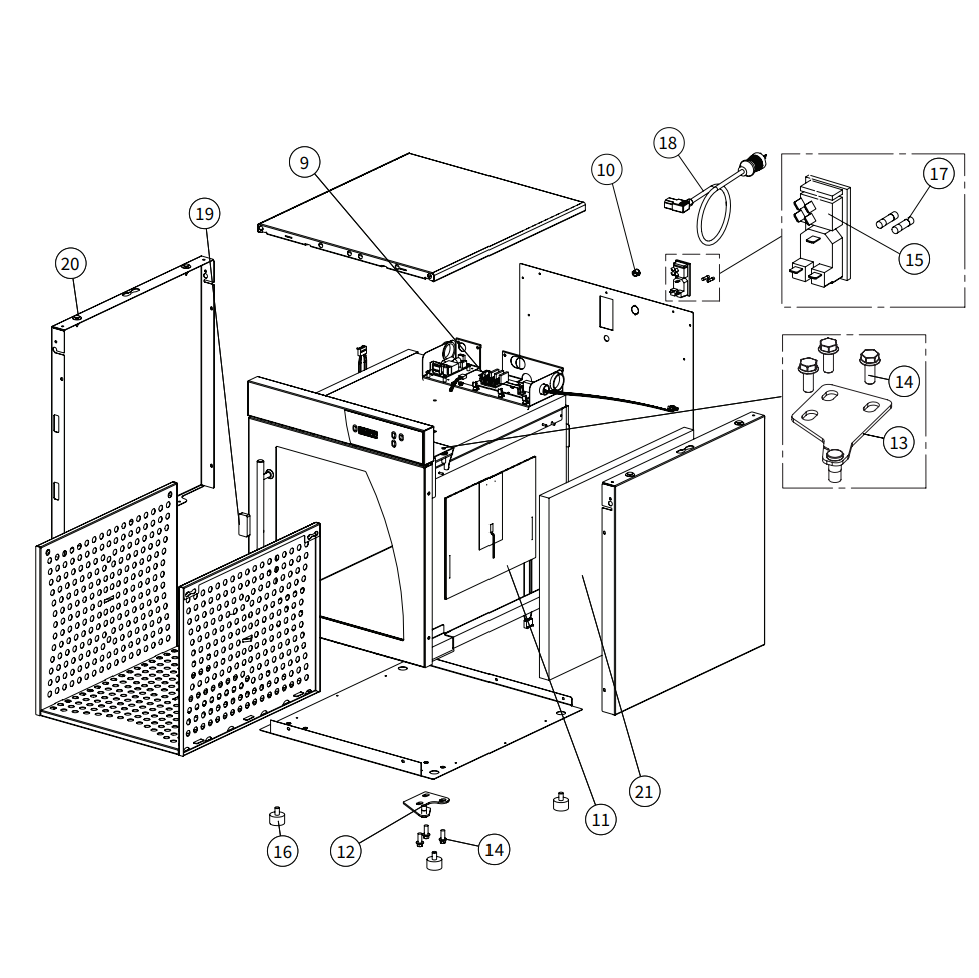

Assembly C

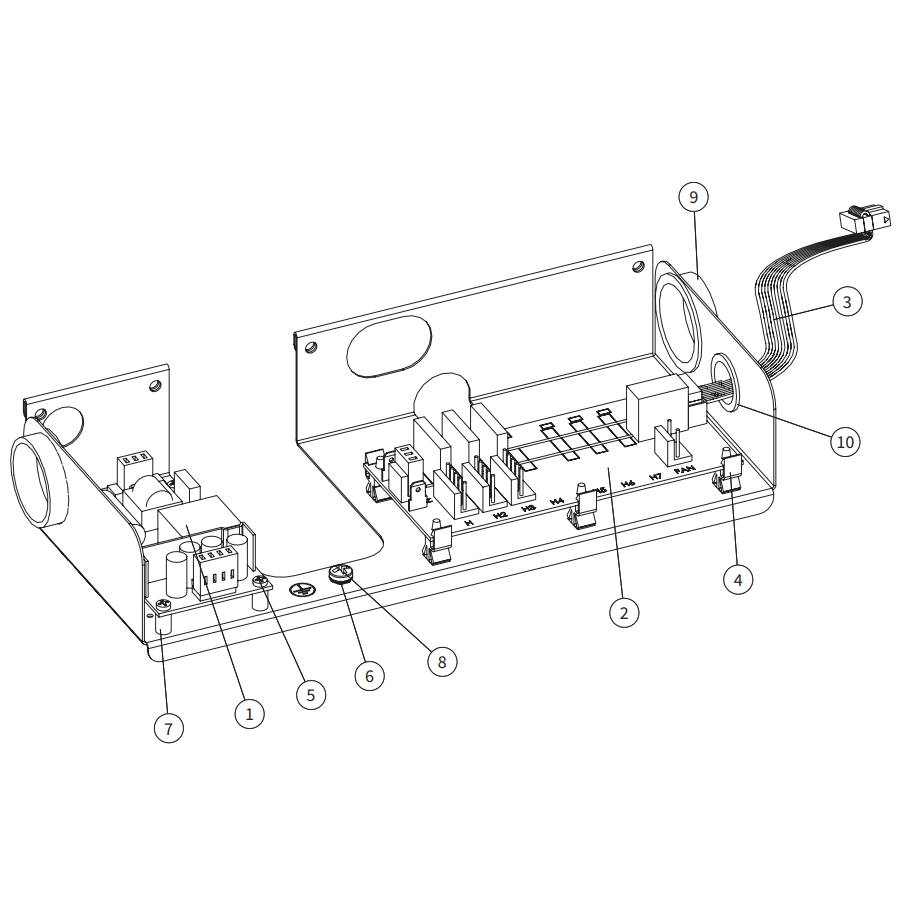

Electrical Chassis

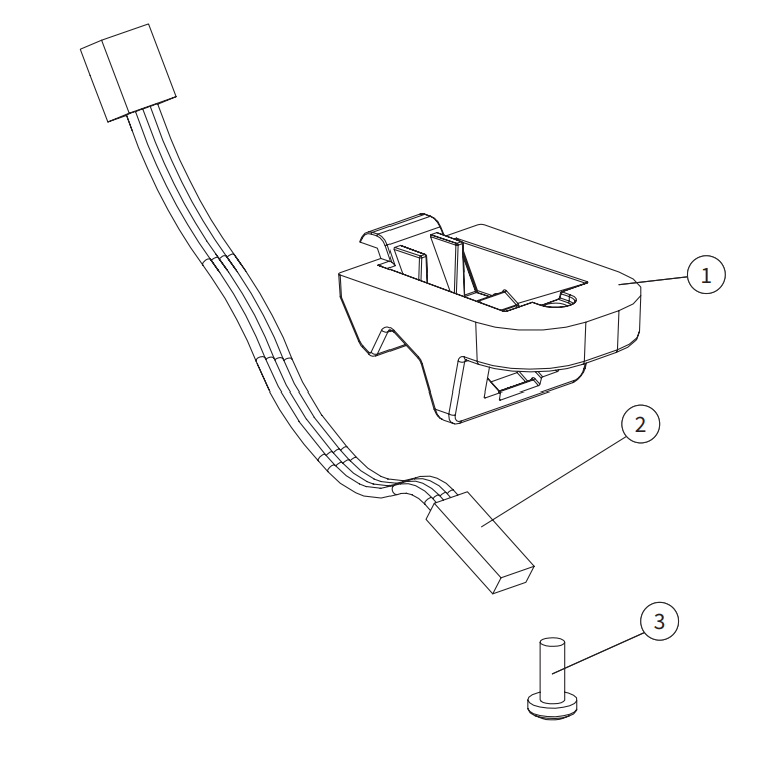

Cavity Sensor

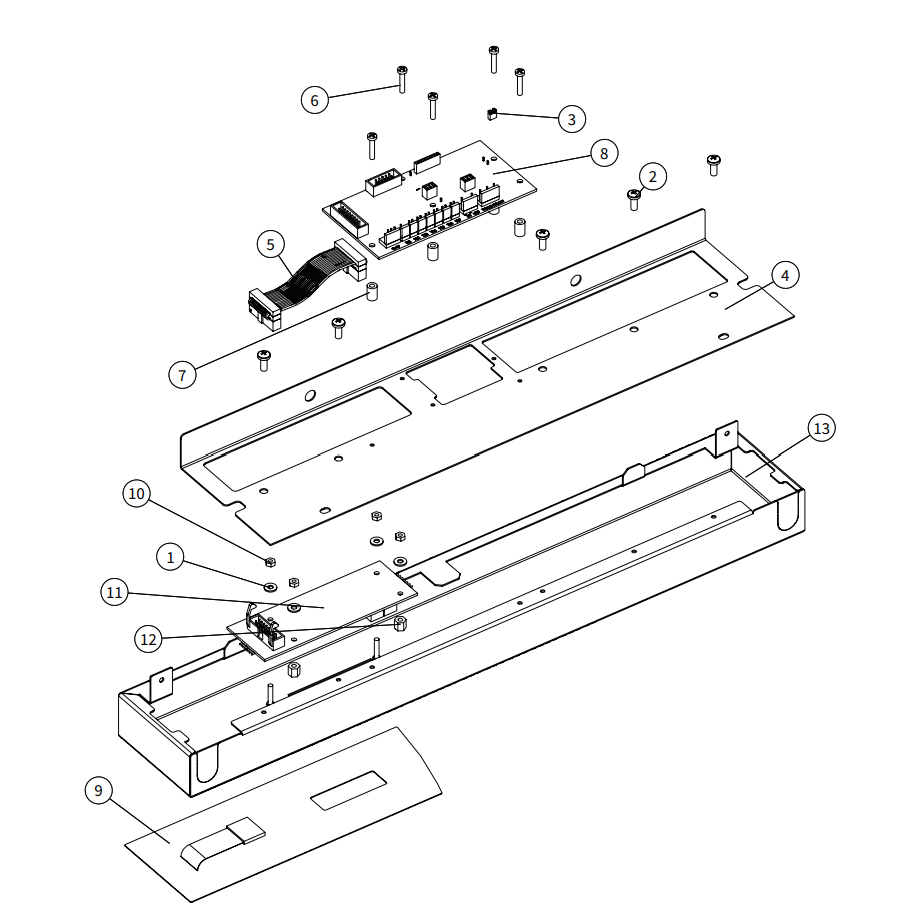

Control Interface

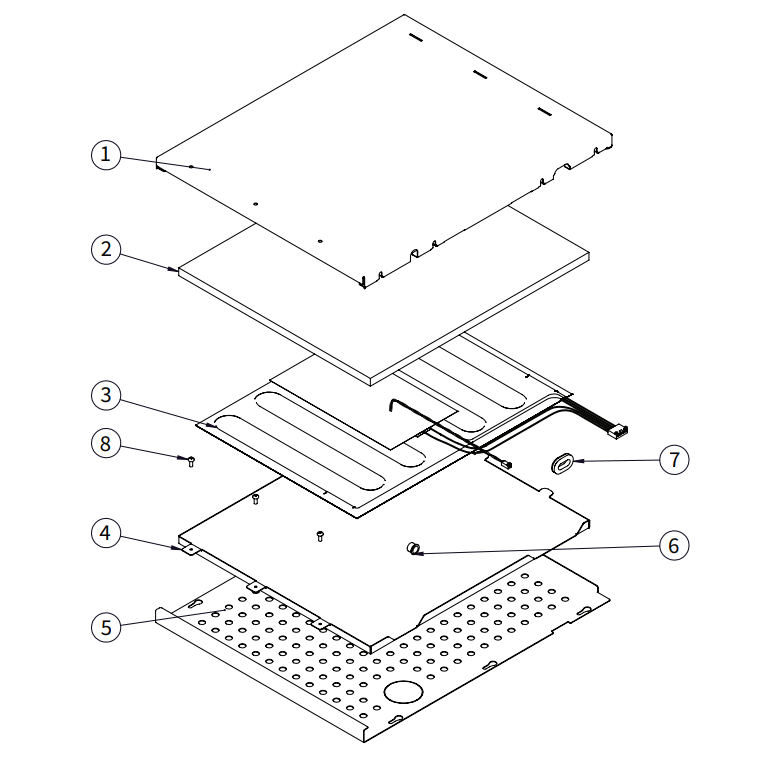

Shelf
parts marked with * only sold by request
Parts List
Assembly A
1014271: EC250, EC350
1029428: DC250, DC350
1014285: EC400, EC750
1029564: DC400, DC750
1016410: EC750, pass-through
1031952: EC/DC250
1031954: EC/DC350
1034139: EC/DC400
1031956: EC/DC750
1014268: EC250
1029427: DC250
1014275: EC350
1029444: DC350
1034402: EC400
1034138: DC400
1014289: EC750
1029566; DC750
1029566: DC750
1016409: EC750, pass-through
1016409: EC750, switch, pass-through
1014270: EC250/EC350
1029443: DC250/DC350
1014284: EC400, EC750
1029562: DC400, DC750
1016407: EC750, pass-through
Assembly B
1011265: 2.5ft3
1011265: 3.5ft3
1011471: 4.0ft3
1011471: 7.5ft3
1012866: 2.5ft3
1012867: 3.5ft3
1011470: 4.0ft3
1011587: 7.5ft3
5017798: 18.5", 2.5ft3/3.5ft3 - EC250/EC350
5027966: 18.5" 2.5ft3/3.5ft3 - DC250/DC350
5017799: 24" 4.0ft3/7.5ft3 - EC400/EC750
5027967: 24" 4.0ft3/7.5ft3 - DC400/DC750
5017998: EC250, window, 2.5ft3
5027970: DC250, window, 2.5ft3
5017762: EC250, solid, 2.5ft3
5018007: EC250, window w/lock, 2.5ft3
5027973: DC250, window w/lock, 2.5ft3
5018001: EC250, solid w/lock, 2.5ft3
5017999: EC350, window, 3.5ft3
5027971: DC350, window, 3.5ft3
5017763: EC350, solid, 3.5ft3
5018008: EC350, window w/lock, 3.5ft3
5027974: DC350, window w/lock, 3.5ft3
5018002: EC350, solid w/lock, 3.5ft3
5031379: EC400, window, 4.0ft3
5031195: DC400, window, 4.0ft3
5031381: EC400, solid, 4.0ft3
5031380: EC400, window w/lock, 4.0ft3
5031196: DC400, window w/lock, 4.0ft3
5031382: EC400, solid w/lock, 4.0ft3
5018000: EC750, window, 7.5ft3
5027972: DC750, window, 7.5ft3
5017764: EC750, solid, 7.5ft3
5018009: EC750, window w/lock, 7.5ft3
5027975: DC750, window w/lock, 7.5ft3
5018003: EC750, solid w/lock, 7.5ft3
Assembly C
5017792: 3-zone, 120V, 2.5ft3, 4.0ft3
5017795: 3-zone, 230V, 2.5ft3, 4.0ft3
5017793: 4-zone, 120V, 3.5ft3, 7.5ft3
5017796: 4-zone, 230V, 3.5ft3, 7.5ft3
EL-46665: 2.5ft3
EL-36692: 3.5ft3, 4.0ft3, 7.5ft3
5015523: Right Hand
5018611: Left Hand
5015522: Right Hand
5018610: Left Hand
14. *SC-24869: Screw, Fuse Box
15. SW-46492: Switch, Fuse Box
16. FE-29203: Bumper Feet, Rubber
18. CD-35030: Power Cord, NEMA 5-15P, 120V
20. *CL-29193: Clip, Nylon Trim Panel
5018011: 2.5ft3, 3.5ft3, 4.0ft3
5018012: 7.5ft3
Electrical Chassis
BA-39301: 3-zone, 120V, 2.5ft3, 4.0ft3
BA-39302: 4-zone, 120V, 3.5ft3, 7.5ft3
BA-39303: 3-zone, 230V, 2.5ft3, 4.0ft3
BA-39304: 4-zone, 230V, 3.5ft, 7.5ft3
3. CB-35031: Cable, Relay Board
4. CL-35031: Clip, Edge Holding
5. *SC-22270: Screw, M3-0.5 x 16mm, Phillips Head
6. *SC-36973: Screw, Zinc, Pan Phillips, Metric, M5
7. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon
8. *WS-2467: Washer, Interlocking
9. *BU-3013: Bushing, Snap, 1-1/2"
10. *BU-3007: Bushing, Snap, 7/8", Black
Cavity Sensor
Control Interface
1. *WS-23148: Washer, 6-32, Nylon
2. *SC-22273: Screw, M4 x 0.7 x 10mm Pan
3. *CR-36952: Shunt Jumper
1016561: S/S, 2.5ft3, 3.5ft3
1016562: S/S, 4.0ft3, 7.5ft3
1029430: P/S, 2.5ft3, 3.5ft3
1029445: P/S, 4.0ft3, 7.5ft3
5. CB-35192: Cable, 3.5" Display
6. *SC-35824: Screw, M3-0.5 x 16mm, Phillips Head
7. *SP-29425: Spacer, 1/4" Dia x 3/8" Nylon
8. 5018020: Control Assembly Kit
PE-46499: Titan Series
PE-46245: Comfort Series
10. *NU-22285: Nut, M3-0.5 Hex Nut
11. BA-34868: Control Board, Display
12. *SP-33707: Spacer, Support, Nylon, 1.4"
Shelf
1023672: 3.5ft3
1014609: 7.5ft3
1025092: 3.5ft3
1017637: 7.5ft3
EL-39472: 3.5ft3
EL-36692: 7.5ft3
1023663: 3.5ft3
1016316: 7.5ft3
1011230: 3.5ft3
1011597: 7.5ft3
6. *BU-3006: Bushing, 1/2" Hole
7. *BU-36408: Grommet, Neoprene, Black
8. *SC-22273: Screw, M4 x 0.7 x 10mm Pan
