KB-EC Series Blanket Warmer
For models EC1540 EC2060

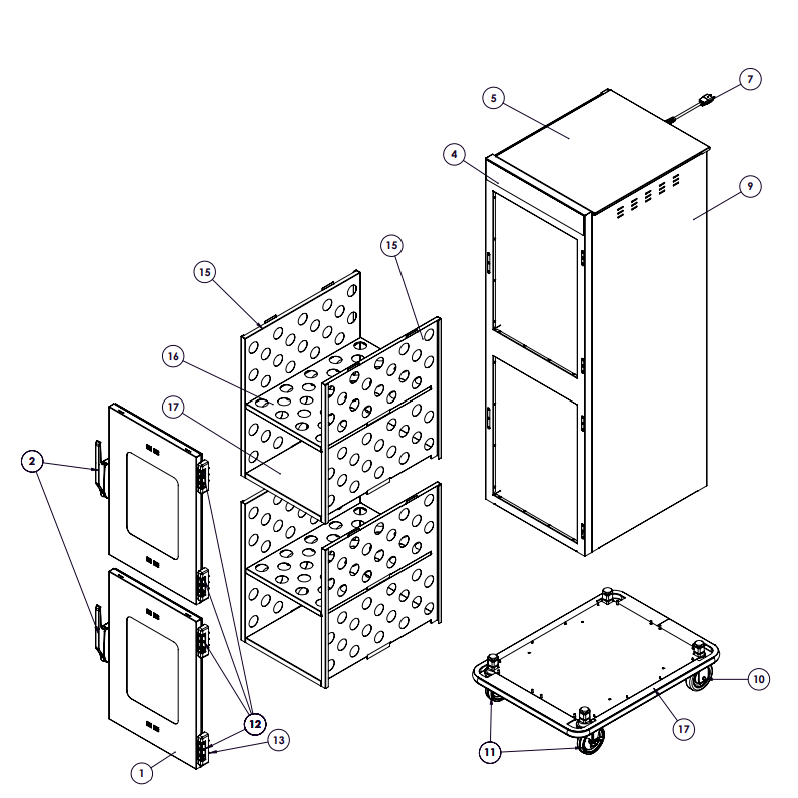

Full Assembly
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

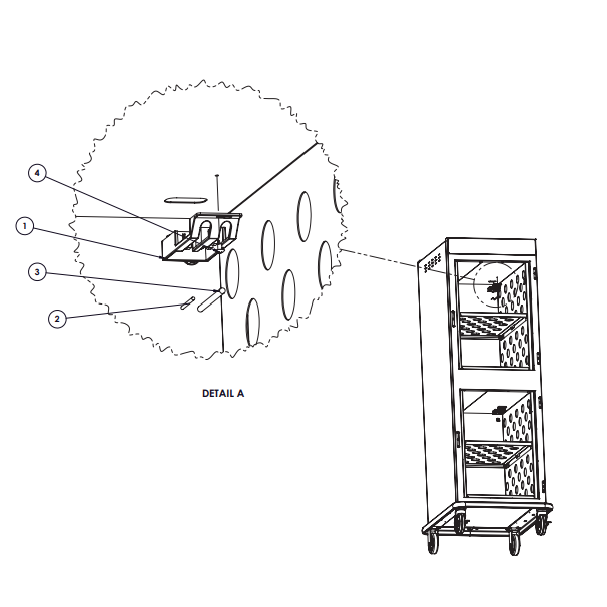

Sensor Assembly
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

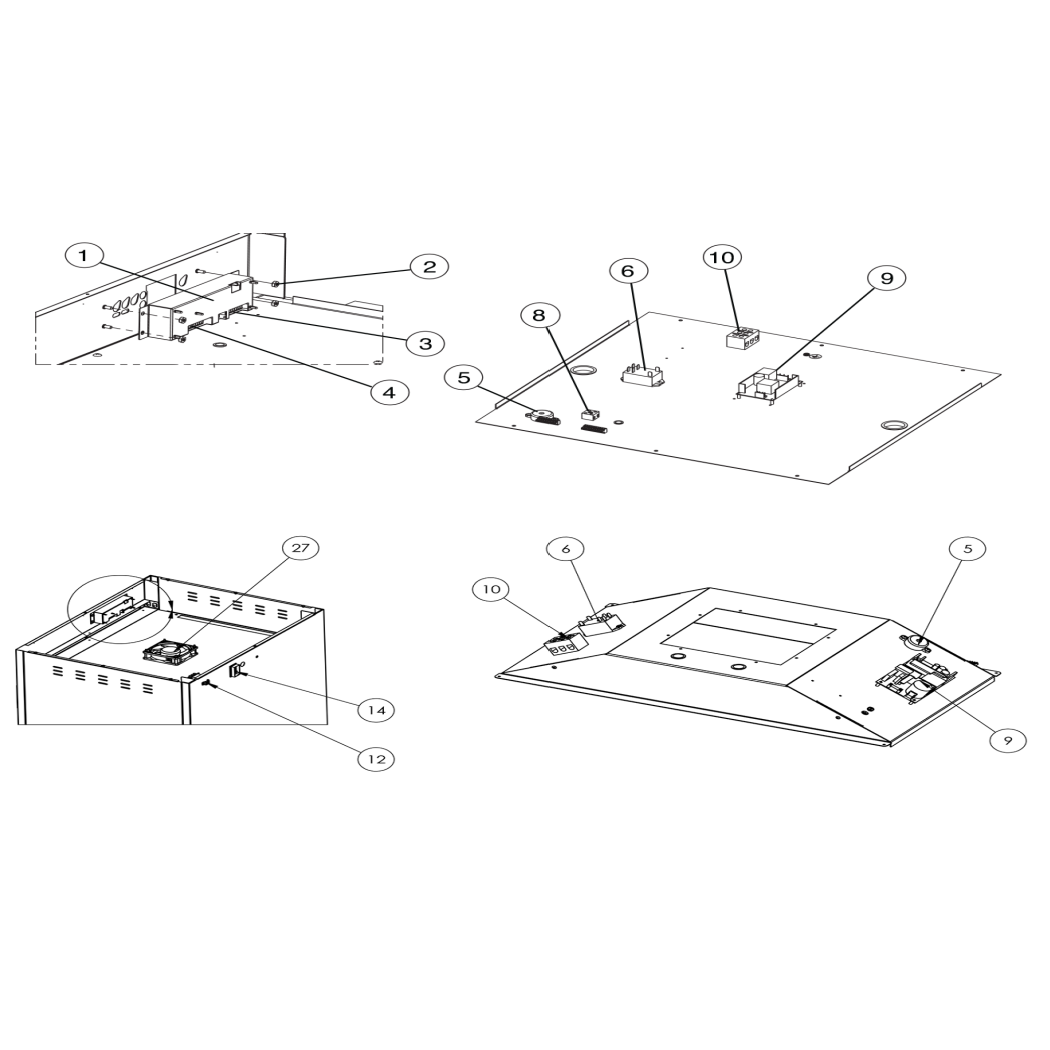

Electrical
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

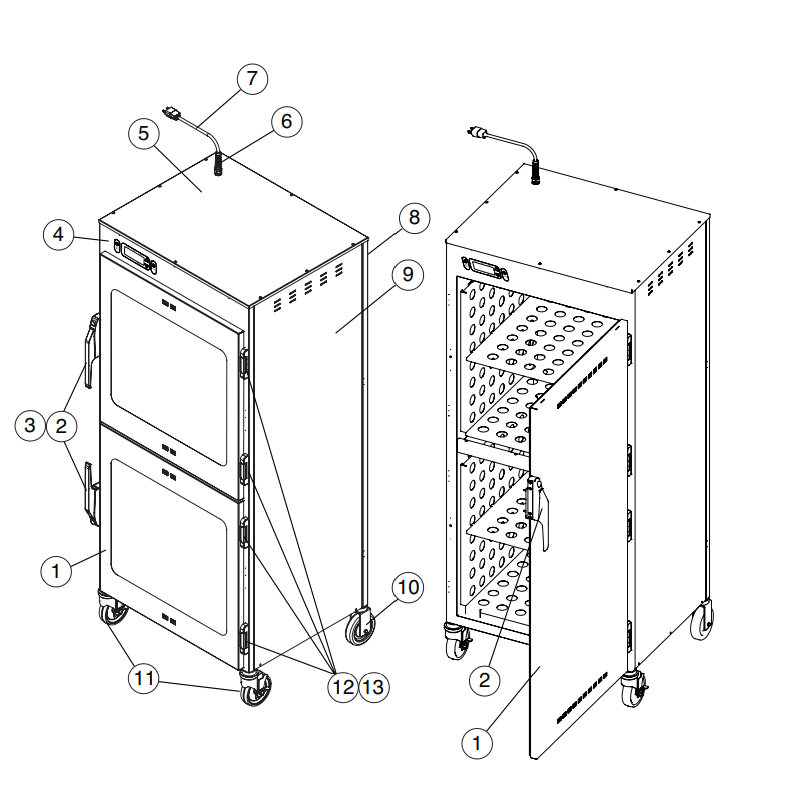

Full View
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

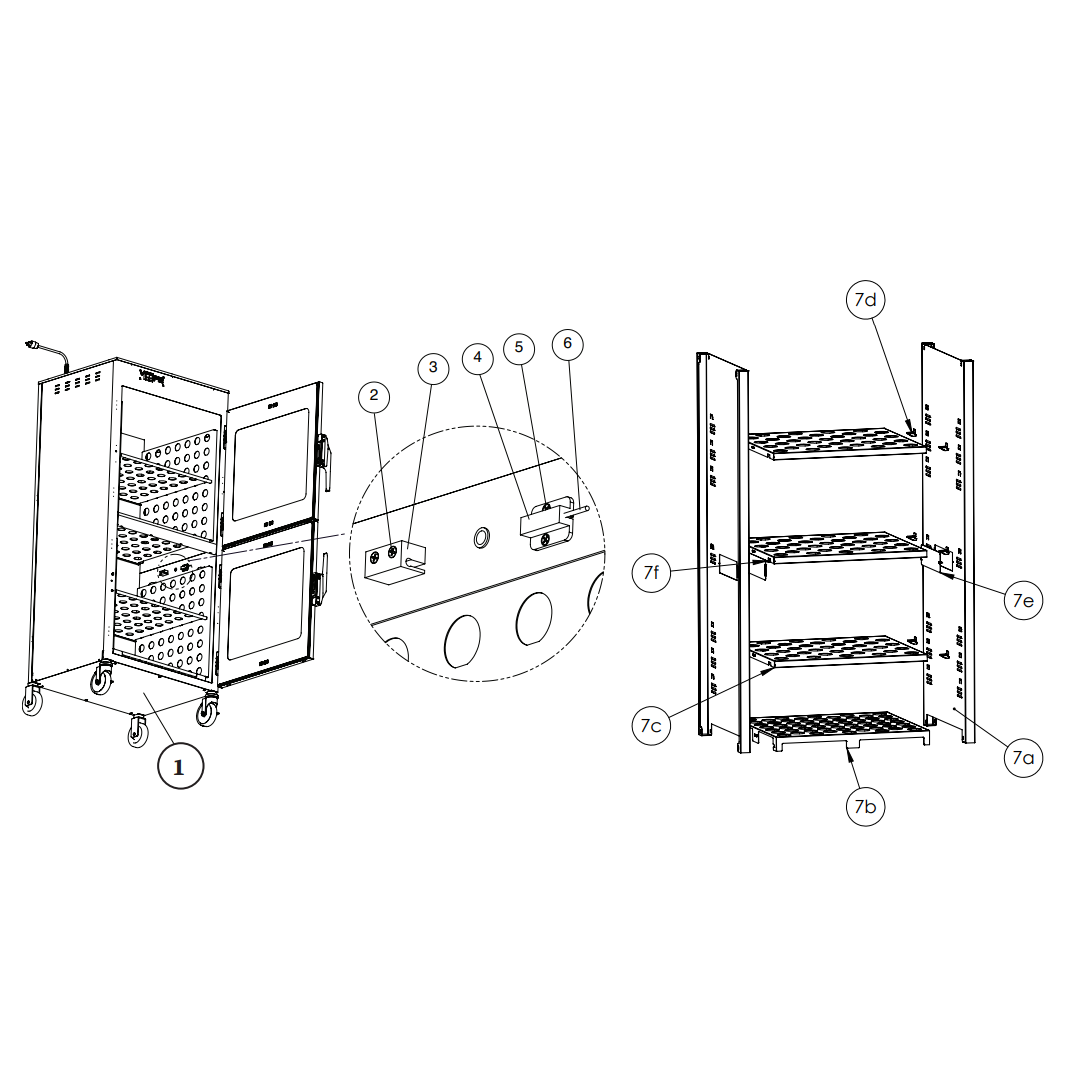

Interior View
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.

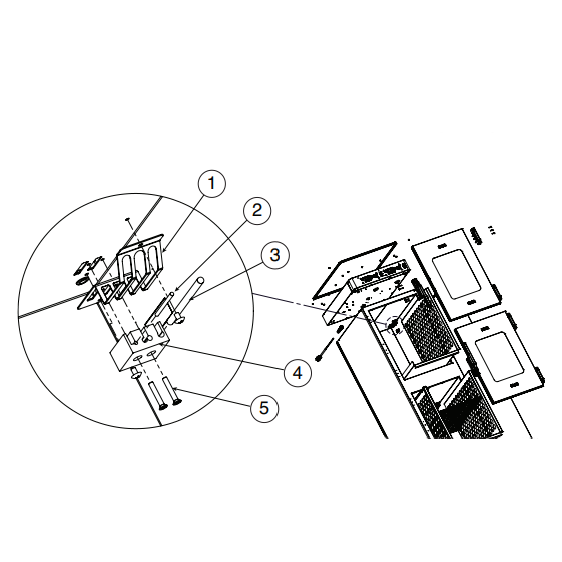

Sensor Assembly
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.
Electrical
Using the identifying number, you can find the part number in the table below. Click on the drop downs below to view the links to the parts where you can order online.
parts marked with * only sold by request
Parts List
Full Assembly
1. 5001253: Window Door Assembly
3. SC-35259: Screw, M5 x 0.8mm flat Phillips
4. PE-47445: Control Panel Overlay - EC1540
6. BU-34836: Strain Relief Bushing (not shown)
8. 1035952: Rear Cover (not shown)
1035954: Left
1037064: Right
10. CS-24874: Casters, 5" (127 mm), Stem, RIgid
11. CS-24875: Casters, 5" (127mm), Stem, Swivel with Brake
12. HG-22338: Hinge Set (1 set of 2 hinges)
13. SC-23868: Screws, Flat Phillips
14. 5032667: Blanket Insert Assembly
15. 1035934: Blanket Support, Side
16. 1035936: Panel, Insert, Shelf
17. 1035935: Panel, Insert, Bottom
Sensor Assembly
1. BK-47565: Sensor Bracket
4. *SC-22138: Screw, 8-32 x 1", Flat, Phillips
Electrical
2. NU-26526: Nut, #8-32 UNC
3. CR-33717: Connector, 10 Pin
4. CR-33718: Connector, 9 Pin
5. BP-3567: Beeper, Solid State
6. RL-34434: Relay, 12V DC, coil
7. SC-2146: Screw, 6-32 x 3/4" Pan Flat-Head
8. CR-34967: Connector, Compact, 2 Conductor
9. BA-34041: Power Supply Board
10. BK-3019: Terminal Block, 3 Form Compress
11. TT-33476: Thermostat, Manual Reset
12. TT-34600: Thermostat, Manual Reset
13. 1009751: Hi-Limit Protection Cover
14. *SC-22271: Screws, M4-0.7 x 6mm, Phillips
15. SW-33858: Circuit Breakers Switch
16. FI-34825: Filter, RFL Pwer Line (not shown)
17. ST-25670: Equipotential Ground Stud (not shown)
18. BU-34836: Stain Relief Bushing (not shown)
19. E3029CD: Cordset (not shown)
20. CR-34065: Connector, 4 pos (not shown)
21. CR-34066: Connector, 5 pos (not shown)
22. CR-3806: Connector, terminal (not shown)
23. SW-33559: Door Switch (not shown)
24. SC-36973: Screw (not shown)
25. TT-34350: Themostat, Auto Reset (not shown)
26.: SC-22271: Screw, M4 x 0.75mm Pan PHH SST A2 MS (not shown)
27. WS-22301: Washer, CT, M, Split Lock Washer 18-8 (not shown)
28. 1030595: Spacer Plate
29. Wire Diagram (not shown)
7756: 120V
77238: 230V
30. SP-33901: Spacer, Nylon (not shown)
31. BU-3013: Bushing
32. SP-33707: Spacer, Support Circuit Board
Accessories
1. 5013889: Built-in Trim Kit
2. 5015440: Full-Perimeter Rubber Bumper
3. 5011149: Leg Kit
4. LK-22657: Lock For Door Handle
Heating Cable Replacement Kit
4874: Heating Cable Replacement Kit
--includes--
1. CB-3044: Cable Heating Element
2. *BU-3106: Cup Bushing
3. *TA-3540: Electrical Tape
4. *NU-2215: Hex Nut
8. *BU-3105: Shoulder Bushing
9. *ST-2439: Stud, 10-32
